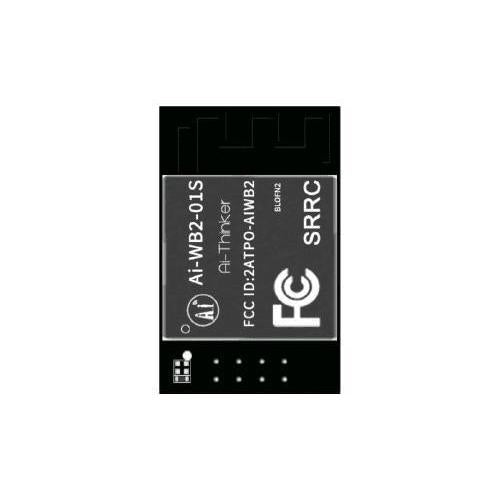

WiFi and Bluetooth Module, 32 BIT, MCU Onboard Antenna, DIP 8 Package - AI-WB2-01S
WiFi and Bluetooth Module, 32 BIT, MCU Onboard Antenna, DIP 8 Package - AI-WB2-01S
Regular price
£6.69 GBP
Regular price
Sale price
£6.69 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
AI-WB2-01S is a Wi-Fi & Bluetooth module with on board antenna. This module is equipped with BL602 chip as the core processor and supports Wi-Fi 802.11b/g/n protocol and BLE 5.0 protocol. The BL602 chip has a built-in 32-bit RISC CPU with low power consumption and 276KB RAM. It can be widely used in Internet of Things(IoT), mobile devices, wearable electronic devices, smart home and other fields.
Features
- DIP-8 package
- Wi-Fi security support WPS/WEP/WPA/WPA2 Personal/WPA2 Enterprise/WPA3
- Support 20MHz bandwidth and max rate is 72.2Mbps
- Bluetooth BLE 5.0, Bluetooth mesh
- Support station + BLE mode, station + SoftAP + BLE mode
- Secure start-up, supports mirroring with ECC-256 signature
- Support QSPI/SPI Flash On-The-Fly AES Decryption, support AES 128 CTRmode
- Support AES 128/192/256-bit encryption engine, SHA-1/224/256, true Random number generator (TRNG)
- Integrated Wi-Fi MAC/BB/RF/PA/LNA/BT, supports UART, PWM, ADC and GPIO
- Size - 14.5x24.5x11mm
| Specifications | |
|---|---|
| Frequency RF | 2.4835GHz |
| Module Interface | ADC, GPIO, PWM, UART |
| Module Applications | Internet of Things (IOT), Mobile Devices, Wearable Electronic Devices, Smart Home and Other Fields |
| Product Range | Ai-WB12 Series |
| Country of Origin: | China |
