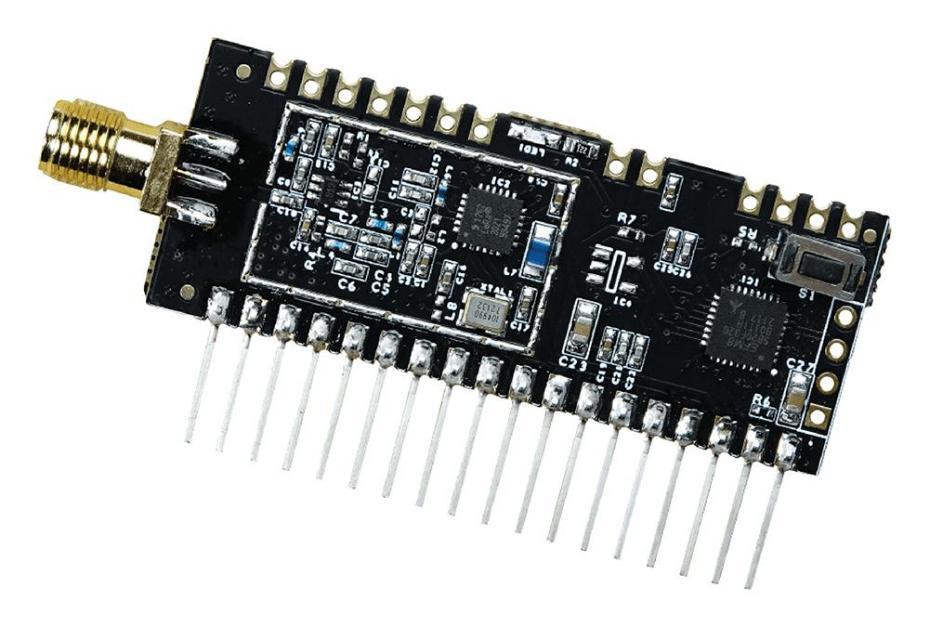

Telemetry Module, 868MHz, 918MHz,1.8V to 3.6V, SIL - GAMMA62T-89D
Telemetry Module, 868MHz, 918MHz,1.8V to 3.6V, SIL - GAMMA62T-89D
Regular price
£30.29 GBP
Regular price
Sale price
£30.29 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
GAMMA62T Telemetry Module can be a Transmitter / Receiver / Transceiver based industrial bi-directional remote module. Two or more modules may be combined to provide a simple or complex network of radio telemetry. It can also be used in conjunction with any RF Solutions hand held transmitter operating on the same frequency to create an embedded Remote Control System. GAMMA62T is easy to use with direct no-volt Switch input and direct Switching outputs. GAMMA62T uses the latest OFDM, spread spectrum technology and extensive algorithm enhancements to achieve an industry leading 20Km (12mile) range.
Features
- Suitable for long range telemetry, remote switching, embedding remote control and remote sensor
- 10 "No Volt" Switch inputs
- 10 Digital Switching outputs
- 1x Serial data output
- Map any I/P to any or many O/P's
- FSK / Spread Spectrum technology
- No external components
- Operates at 868MHz or 915MHz
- 868MHz RED/ CE compliant
| Specifications | |
|---|---|
| RF Modulation | FSK, LoRa, OFDM |
| Frequency Max | 918MHz |
| Sensitivity dBm | -148dBm |
| Supply Voltage Min | 1.8V |
| Supply Voltage Max | 3.6V |
| Transmit Power | 22dBm |
| Module Interface | RS232, Serial |
| Supply Current | 118mA |
| RF Transceiver Applications | Long Range Telemetry, Remote Switching, Embedded Remote Control, Remote Sensors |
| Product Range | GAMMA62T-89x Series |
| Country of Origin: | Great Britain |
