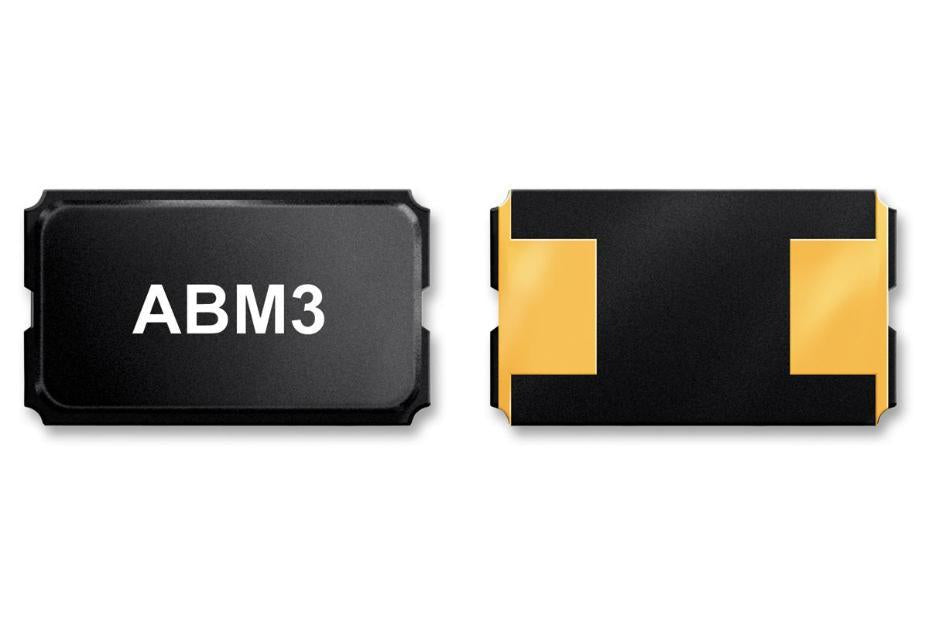

SMD Crystal, 8MHz, 5mm x 3.2mm, 30ppm, 18pF, 20ppm - ABM3-8.000MHZ-D2Y-T
SMD Crystal, 8MHz, 5mm x 3.2mm, 30ppm, 18pF, 20ppm - ABM3-8.000MHZ-D2Y-T
Regular price
£1.79 GBP
Regular price
Sale price
£1.79 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The ABM3 Series miniature ceramic SMD Crystal Oscillator works at a frequency range of 8 to 54MHz with fundamental or 3rd overtone operation mode. It is suitable for use in cellular telephones, pagers and PCMCIA applications.
Features
- AT-cut fundamental or 3rd OT mode
- Suitable for RoHS reflow profile
- Tight stability available ±10
- Ceramic package hermetically glass sealed assures high precision and reliability
| Specifications | |
|---|---|
| Frequency Nom | 8MHz |
| Crystal Case | SMD, 5mm x 3.2mm |
| Frequency Stability + / - | 30ppm |
| Load Capacitance | 18pF |
| Frequency Tolerance + / - | 20ppm |
| Product Range | ABM3 |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
| Important Product Warning: | Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts. |
| Country of Origin: | China |
