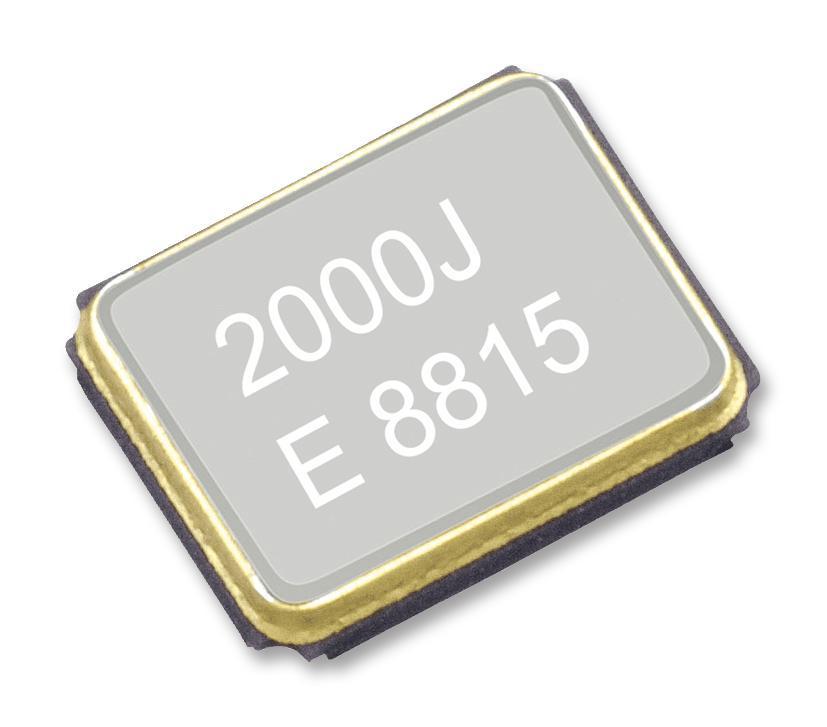

SMD Crystal, 24MHz, 3.2mm x 2.5mm, 10ppm, 9pF, 10ppm - X1E0000210122 TSX-3225 24 MHZ 9.0PF
SMD Crystal, 24MHz, 3.2mm x 2.5mm, 10ppm, 9pF, 10ppm - X1E0000210122 TSX-3225 24 MHZ 9.0PF
Regular price
£1.79 GBP
Regular price
Sale price
£1.79 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The X1E0000210122 TSX-3225 24 MHZ 9.0PF is a 3.2 x 2.5 x 0.6mm 10ppm Crystal Unit for mobile phone, Bluetooth, W-LAN, ISM band radio, clock for MPU applications. The TSX-3225 series crystal features low ESR.
Features
- Fundamental overtone order
- 40R Maximum equivalent series resistance
- 100μW for RF reference and 200μW for clock Maximum drive level
| Specifications | |
|---|---|
| Frequency Nom | 24MHz |
| Crystal Case | SMD, 3.2mm x 2.5mm |
| Frequency Stability + / - | 10ppm |
| Load Capacitance | 9pF |
| Frequency Tolerance + / - | 10ppm |
| Product Range | TSX-3225 Series |
| Operating Temperature Min | -20°C |
| Operating Temperature Max | 75°C |
| Country of Origin: | Malaysia |
