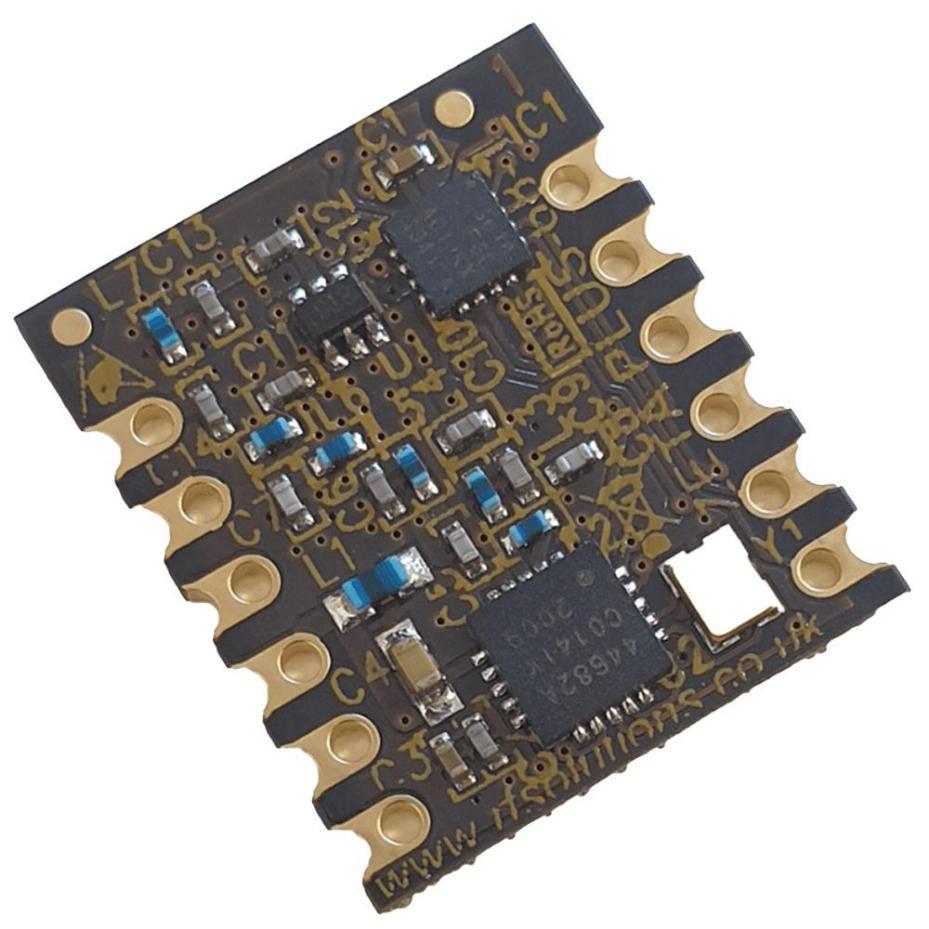

Smart RF Transceiver, 868MHz, SMT - ZETAPLUS20-8S
Smart RF Transceiver, 868MHz, SMT - ZETAPLUS20-8S
Regular price
£16.49 GBP
Regular price
Sale price
£16.49 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
ZETAPLUS20 makes a radio data link easy. It has a simple interface using either SPI or UART (LV RS232) and provides a plug 'n' play RF comms to any application. With connection to power, comms and antenna, the user can start sending and receiving data immediately. No other external components are required. With a highly tuned on-board RF matching network ZETAPLUS20 outperforms other modules achieving range far in excess of its competitors for the given power output/power consumption. Specifications are stated from the module I/O (not the pin of the IC on the module).
Features
- Suitable for home automation, sensor / mesh RF networks, telemetry, keyless entry, health monitors, RF data comms
- Wire replacement SMARTRADIO
- Upto 4Km range
- Specifications (from the pin of the module):- Transmit Power +20dBm, Sensitivity -132dBm
- Max data rate at 500Kbps
- Easy UART and SPI interface
- Full CRC Error Checking Option
- User Selectable Data Payload
- Best in Class cost performance
- 1.8V - 3.6V Operating Voltage
- Low power consumption:- 0.5nA Standby, <10mA Rx, 18mA Tx at 10dBm
- 64 Byte Buffer (FIFO)
- Based on Silicon Labs' Si4468 chipset
- No configuration necessary
- No external components
- Fast Plug and Play SPI or UART RF Link
- Form factor: 16mm x 18mm
| Specifications | |
|---|---|
| RF Modulation | FSK, FM |
| Data Rate Max | 500Kbps |
| Frequency Max | 868MHz |
| Sensitivity dBm | -132dBm |
| Supply Voltage Min | 1.8V |
| Supply Voltage Max | 3.6V |
| Transmit Power | 20dBm |
| Module Interface | SPI, UART |
| Supply Current | 85mA |
| RF Transceiver Applications | Home Automation, Sensor/Mesh RF Networks, Telemetry, Keyless Entry, Health Monitor, RF Data Comms |
| Product Range | ZETAPLUS20-8x Series |
| Country of Origin: | Great Britain |
