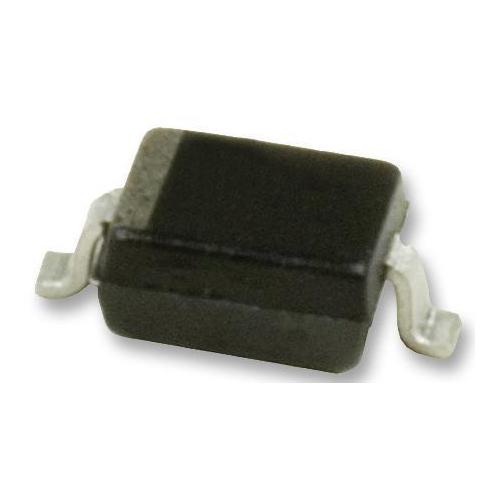

Small Signal Schottky Diode, Single, 40 V, 300 mA, 400 mV, 1.25 A, 150 °C - BAT54JFILM
Small Signal Schottky Diode, Single, 40 V, 300 mA, 400 mV, 1.25 A, 150 °C - BAT54JFILM
Regular price
£1.09 GBP
Regular price
Sale price
£1.09 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The BAT54 series from STMicroelectronics are surface mount small signal fast switching schottky barrier diodes. Featured with negligible switching losses and low capacitance, configured in single, common anode, common cathode, series, parallel and opposite diodes configurations.
Features
- Available in SOD-23, SOD-323, SOD-523, SOT-23, SOT-323 or SOT-666 standard packages
- Peak repetitive reverse voltage of 40V
- Non repetitive peak forward surge current is 1A at tp 10ms
- Operating junction temperature range from -40°C to 150°C
- Reverse recovery time of 5ns
- Forward voltage of 900mV at IF 100mA
| Specifications | |
|---|---|
| Diode Configuration | Single |
| Repetitive Peak Reverse Voltage | 40V |
| Repetitive Peak Reverse Voltage | 40V |
| Forward Current If(AV) | 300mA |
| Average Forward Current | 300mA |
| Forward Voltage Max | 400mV |
| Forward Voltage VF Max | 400mV |
| Forward Surge Current | 1.25A |
| Forward Surge Current Ifsm Max | 1.25A |
| Operating Temperature Max | 150°C |
| Diode Case Style | SOD-323 |
| No. of Pins | 2Pins |
| Reverse Recovery Time | 5ns |
| Important Product Warning: | Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts. |
| Country of Origin: | China |
