Multi Way 4-16 Output CCTV Power Supply, 10A - HAY-PSUMULTI10A
Multi Way 4-16 Output CCTV Power Supply, 10A - HAY-PSUMULTI10A
Regular price
£72.79 GBP
Regular price
Sale price
£72.79 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

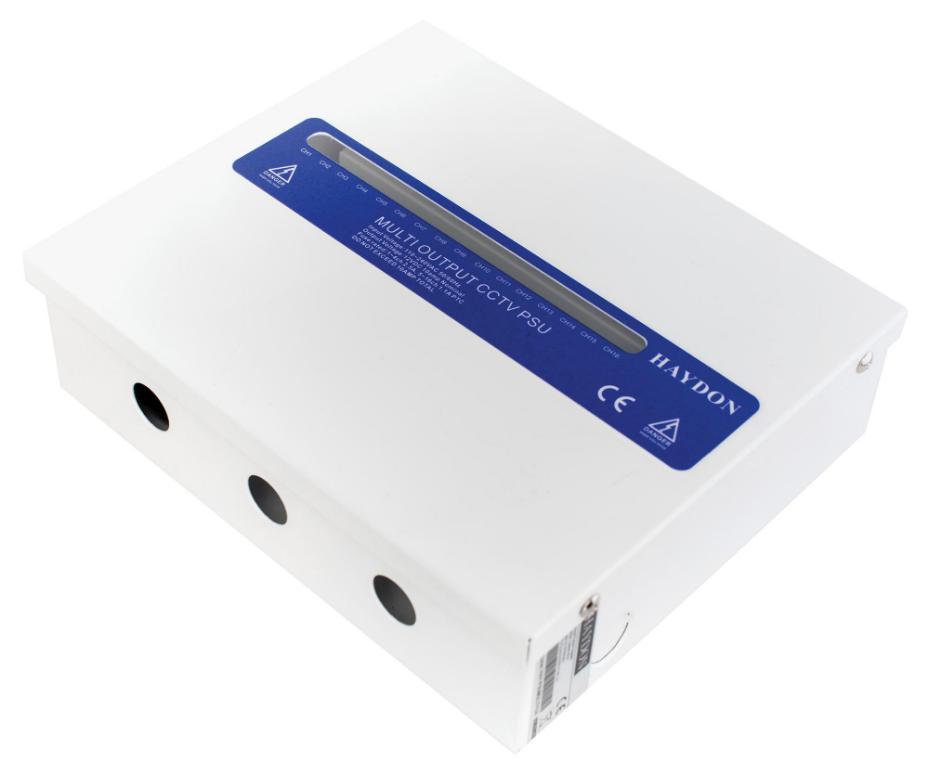

The new MULTI-10A power supplies are rewriting the rule book for Multiway CCTV Power. Now doing the job of 6 previous models without losing any of the current range benefits with its unique fuse layout making it the most cost effective, user friendly & flexible Power supply on the market. The clear panel on the front of the unit allows engineers to see if outputs are live without opening.
Features
- The MULTI-10A has 16 total outputs
- Outputs: 1 to 4 the fuses are rated to 2.5A
- Outputs: 5 to 16 the fuses are rated to 1.1A
- Total power output cannot exceed 10A
- Input Voltage: AC 110 - 240V Rated 3amp main fuse
- Outputs: 16x 12VDC Outputs
- Regulated & Filtered
- Surge Protected
- Internal ON/OFF Power Switch
- Individual LED Output Indicator
- Dimensions: 240x205x65mm
- CE & RoHS Compliant
- Storage Temperature: -20 to 85C; Operating Temperature -10 to 50C; Operating Relative Humidity 0-90%
| Specifications | |
|---|---|
| No. of Outputs | 16Outputs |
| Output Power Max | 120W |
| Output Voltage - Output 1 | 24V |
| Country of Origin: | China |
