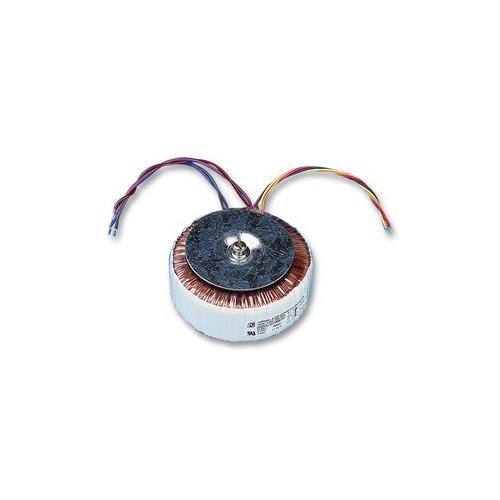

MCTA080/25 Multicomp Transformer 80Va 2X 25V

MCTA080/25 Multicomp Transformer 80Va 2X 25V

£28.89 GBP
£28.89 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.
Product Features
  • TRANSFORMER 80VA 2X 25V
Product Details
Power Rating: 80VA
Secondary Current Nom: 1.6A
Secondary Voltages: 2 x 25V
Transformer Mounting: Chassis
AC Power: 80VA
Approval Bodies: UL
Bolt Length: 50mm
Bolt Size Max: 6
Current Rating: 1.6A
External Diameter: 87.5mm
External Length / Height: 39mm
Mounting Type: Chassis
Output Voltage: 25V
Primary Voltages: 115V, 230V
Regulation: 11%
Secondary Power: 40VA
Temperature Rise: 52°C
Transformer Type: Toroidal
Weight: 1kg
Product Range information

The information below is for the range this product is part of and may not be information specific to the product, please contact us if you are unsure of any of the details.

Product Range Features
  • Double insulated primary leadouts
  • Flexible leadouts can be trimmed to any length without the need for removal of enamel
  • 100% electrical and flash tested
  • Supplied with mounting dish, bolt and 2 foam pads
Product Range Specifications
Technical Data
Load Regulation Temperature Dimensions Fixing Bolt Weight
VA % rise °C Dia H mm kg
15 None 26 60 28 M5 x 40 0.33
30 None 43 67 28 M5 x 40 0.5
50 None 48 76 30 M5 x 40 0.6
60 None 48 85 30 M6 x 50 0.8
80 None 52 87.5 39 M6 x 50 1
100 None 49 85 41 M6 x 50 1.1
120 None 52 89 42 M6 x 50 1.3
160 None 52 100 42 M6 x 50 1.6
225 None 56 110 51 M6 x 60 2.2
250 None 52 119 49 M6 x 50 2.4
300 None 50 119 49 M6 x 50 2.8
500 None 53 136 59 M8 x 75 4.3
625 None 59 139 71 M8 x 75 5.2
1000 None 60 167 70.5 M8 x 80 7.5
