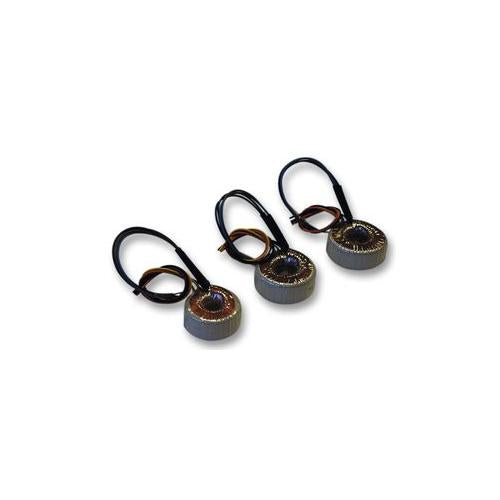

MCFM70/22 Multicomp Transformer , Mini , 7Va , 2 X 22V

The Multicomp MCFM series are miniature open style toroidal transformers with flying leads. These transformers have a very high quality construction and low radiated magnetic field, suitable for sensitive electronics. MCFM series features a single primary winding tapped at 115VAC and 230VAC 50/60Hz and dual secondary windings. Secondary windings can be connected in series or parallel or used independently.

• Power rating ranges from 1.6VA to 7.0VA
• Maximum ambient temperature of 40°C
• Efficiency up to 80%
• Double insulated primary leads
• Resin filled centre with M4 clear mounting hole
• Flexible lead outs can be trimmed to any length without the need of enamel removal
• Suitable for use in low power equipment
• Designed, tested and manufactured in accordance with EN60742, EN60065 and EN60950
• 100% electrical and flash tested
