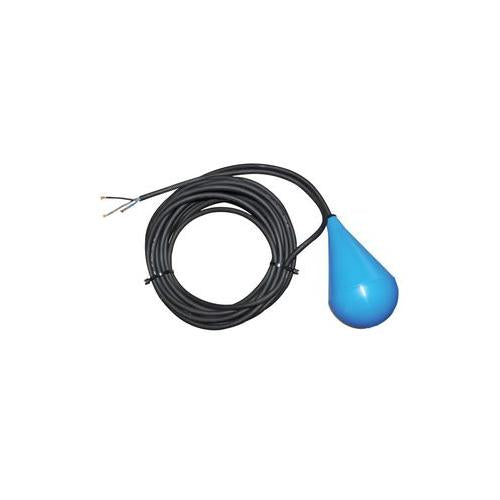

LR08-L10M Triton Controls Float Switch, 10M Cpe Cable
LR08-L10M Triton Controls Float Switch, 10M Cpe Cable
Regular price
£53.19 GBP
Regular price
Sale price
£53.19 GBP
Unit price
/
per
Product Description
The LR08-L10M is a non-mercury level regulator Float Switch moulded in 10m PVC cable or synthetic rubber 3 core cable. The float chamber houses the micro-switch arrangement, totally sealed within a polypropylene casing, with a single pole double throw action. These float switches are efficient liquid level detectors. Actuation is via a roller ball and micro-switch arrangement within the switch thereby eliminating all heavy metals from this version. They are simple to install and designed for trouble free operation over a long life.
Product Features
- Standard buoyant type
- Operational in specific gravities from 0.8 to 1.3
- 70°C Maximum temperature
Product Details
Body Material: | PP (Polypropylene) |
Lead Length: | 10m |
Level Sensor Type: | Liquid |
Operating Pressure Max: | - |
Output Current: | 15A |
Sensor Body Material: | - |
Supply Voltage AC Max: | 250V |
