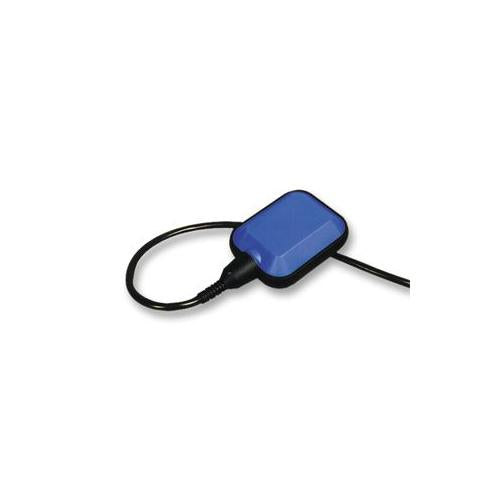

LR03-L10M-CPE Triton Controls Float Switch , Lr03 , 10M Cpe Cable
LR03-L10M-CPE Triton Controls Float Switch , Lr03 , 10M Cpe Cable
Regular price
£40.19 GBP
Regular price
Sale price
£40.19 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Product Features
- FLOAT SWITCH, LR03, 10M CPE CABLE
Product Details
| Output Current: | 15A |
| Sensor Body Material: | CPE (Chlorinated Polyethylene) |
| Body Material: | PP (Polypropylene) |
| Contact Configuration: | SPDT |
| Contact Current AC Max: | 15A |
| Contact Current Max: | 15A |
| Contact Voltage AC Max: | 250V |
| External Length / Height: | 103mm |
| External Width: | 81mm |
| Lead Length: | 10m |
| Material: | CPE |
| Operating Force Max: | 1.3N |
| Operating Force Min: | 0.9N |
| Operating Temperature Max: | 70°C |
| Panel Cut-out Depth: | 40mm |
| Series: | LR03 |
| Specific Gravity: | 1.3 |
| Specific Gravity of Liquid Min: | 0.90 |
Product Range information
The information below is for the range this product is part of and may not be information specific to the product, please contact us if you are unsure of any of the details.
Product Range Description
Float: L=103, W=81 Weight: L=57, Dia.=50
Product Range Features
- LR03, PVC cable for general use
- LR03, CPE cable for use in sewerage
- LR06, PUR cable for use in DIESEL OIL
- LR07, WRAS Approved EPDM cable for use in POTABLE WATER
- Easy to install and inexpensive
- Non mercury construction
- Trouble-free operation
- Optional adjustable ballast weight
- Non-mercury level regulator
Product Range Specifications
| Technical Data | |
| Contact rating | 250 |
| Max. temperature | 70 |
| Specific Gravity | 0.90 |
| Max. submerged depth | 20 metres |
| Actuation | Internal steel roller ball and microswitch |
| Position of weight | Adjustable, 280mm min. from end of float |
