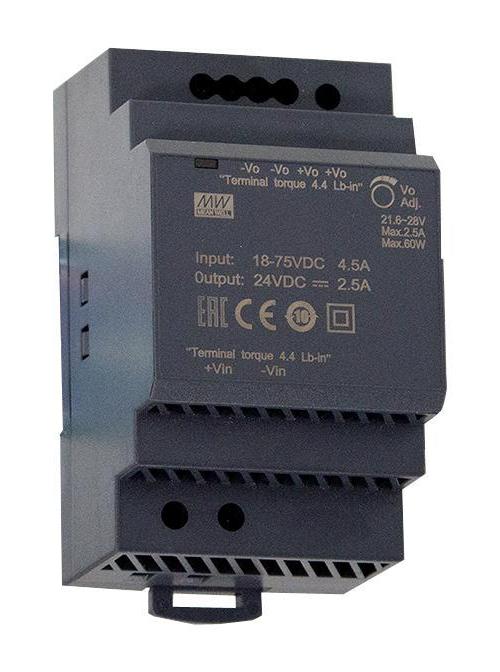

Isolated DIN Rail Mount DC/DC Converter, 24V, 2.5A, 60W - DDR-60L-24
Isolated DIN Rail Mount DC/DC Converter, 24V, 2.5A, 60W - DDR-60L-24
Couldn't load pickup availability
DDR-60L-24 is a DDR-60 series 60W DIN rail type DC-DC converter with main features including easy installation, ultra slim width (52.5mm), 4:1 ultra wide input voltage, 4KVdc I/O isolation, adjustable output voltage (±10%) and full protective functions. It can be used for industrial control, security control, communication system and other fields. Suitable applications are DC buck/boost regulator, increasing system insulation level and voltage drop compensation along cable. It includes short circuit, overvoltage, overload protection, input reverse polarity, input under voltage protection. Application includes industrial control system, semi-conductor fabrication equipment, factory automation, electro-mechanical, wireless network, telecom or datacom system. Approved by IEC 62368-1, UL 62368-1, AS/NZS 62368-1, EAC TP TC 004.
Features
- Input voltage range from 18 to 75VDC, output DC voltage is 24V
- Output rated current is 2.5A, output rated power is 60W, typical efficiency is 92%
- No minimum load required
- Cooling by air free convection
- 3 years warranty
- Working temperature range from -40 to +85°C
- Dimension is (W x H x D) 52.5 x 90 x 54.5mm
| Specifications | |
|---|---|
| Power Supply Applications | Railway |
| Input Ratio | 4:1 |
| Output Power Max | 60W |
| No. of Outputs | 1 Output |
| Output Voltage - Output 1 | 24V |
| Output Current - Output 1 | 2.5A |
| Isolation Voltage | 4kV |
| DC / DC Converter Output Type | Fixed, Adjustable |
| Input Voltage DC Nom | 48V |
| Width | 52.5mm |
| Height | 90.54mm |
| Depth | 54.5mm |
| Input Voltage DC Min | 18V |
| Input Voltage DC Max | 75V |
| Product Range | DDR-60 Series |
| Important Product Warning: | Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts. |
| Country of Origin: | China |
