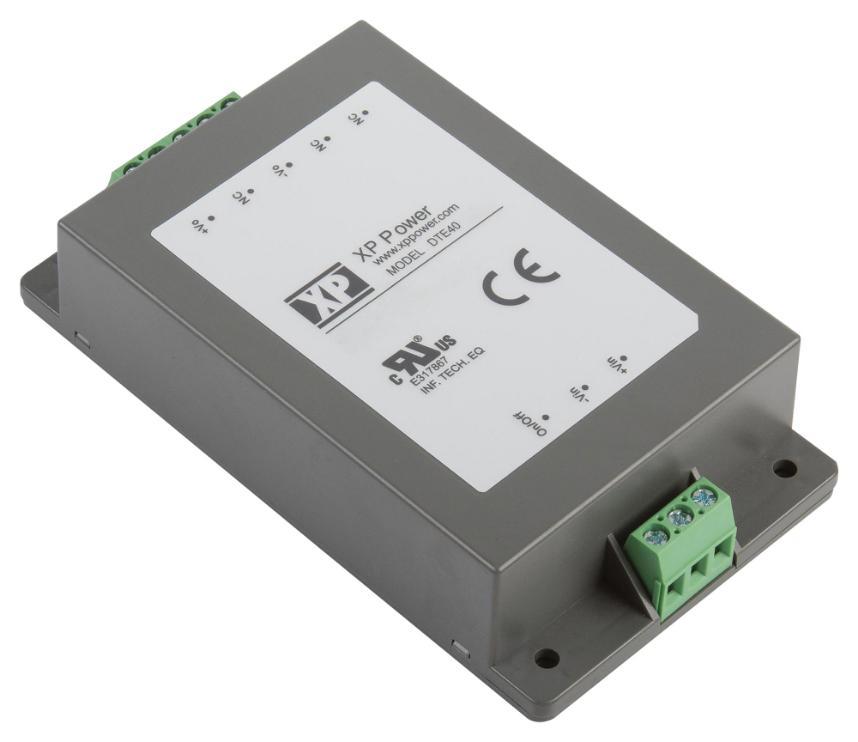

Isolated Chassis Mount DC/DC Converter, 24V, 1.67A, 40W - DTE4024S24
Isolated Chassis Mount DC/DC Converter, 24V, 1.67A, 40W - DTE4024S24
Regular price
£75.39 GBP
Regular price
Sale price
£75.39 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The DTE40 series is a 40W fully encapsulated, chassis mount DC to DC converter with a wide 4:1 input range. The converter features short circuit protection (trip & restart) and overload protection. It has an isolation voltage of 2500VDC and is approved to IEC60950-1, UL60950-1, CB and TUV standards.
Features
- Fully Encapsulated Chassis Mount
- Wide 4:1 Input Range
- Operating Temperature -40°C to 95°C
- High Efficiency, up to 92%
- Remote On/Off
- EN55022 Conducted Level A With No External Components
- See Technical Note for information about XP Power's plans for the UKCA Marking
| Specifications | |
|---|---|
| Power Supply Applications | ITE |
| Input Ratio | 4:1 |
| Output Power Max | 40W |
| No. of Outputs | 1 Output |
| Output Voltage - Output 1 | 24V |
| Output Current - Output 1 | 1.67A |
| Output Regulation | Regulated |
| Isolation Voltage | 3kV |
| DC / DC Converter Type | Module |
| Input Voltage DC Nom | 24V |
| DC / DC Converter Output Type | Fixed |
| Width | 54mm |
| Height | 23.3mm |
| Depth | 96mm |
| Input Voltage DC Min | 9V |
| Input Voltage DC Max | 36V |
| Product Range | DTE40 Series |
| Country of Origin: | Taiwan |
