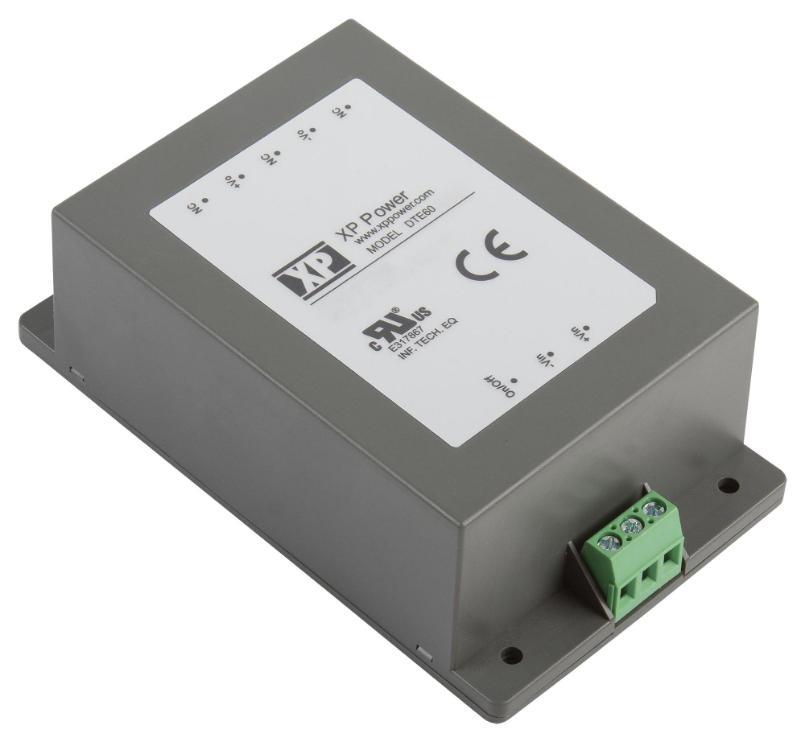

Isolated Chassis Mount DC/DC Converter, 12V, 5A, 60W - DTE6048S12
Isolated Chassis Mount DC/DC Converter, 12V, 5A, 60W - DTE6048S12
Regular price
£104.19 GBP
Regular price
Sale price
£104.19 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The DTE60 series is a 60W fully encapsulated, chassis mount DC to DC converter with a wide 4:1 input range. The converter features short circuit protection (trip & restart) and overload protection. It has an isolation voltage of 2500VDC and is approved to IEC60950-1, UL60950-1, CB and TUV standards.
Features
- Fully Encapsulated Chassis Mount
- Wide 4:1 Input Range
- Operating Temperature -40°C to 95°C
- High Efficiency, up to 92%
- Remote On/Off
- EN55022 Conducted Level A With No External Components
- See Technical Note for information about XP Power's plans for the UKCA Marking
| Specifications | |
|---|---|
| Power Supply Applications | ITE |
| Input Ratio | 4:1 |
| Output Power Max | 60W |
| No. of Outputs | 1 Output |
| Output Voltage - Output 1 | 12V |
| Output Current - Output 1 | 5A |
| Isolation Voltage | 2.5kV |
| DC / DC Converter Type | Module |
| Input Voltage DC Nom | 48V |
| DC / DC Converter Output Type | Fixed |
| Width | 67.8mm |
| Height | 38mm |
| Depth | 112mm |
| Input Voltage DC Min | 18V |
| Input Voltage DC Max | 75V |
| Product Range | DTE60 Series |
| Country of Origin: | Taiwan |
