Interchangeable Power Supply, 30V DC, 1A, 30W, 2.1mm Plug - 15DYS624-300100W-K
Interchangeable Power Supply, 30V DC, 1A, 30W, 2.1mm Plug - 15DYS624-300100W-K
Regular price
£16.49 GBP
Regular price
Sale price
£16.49 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

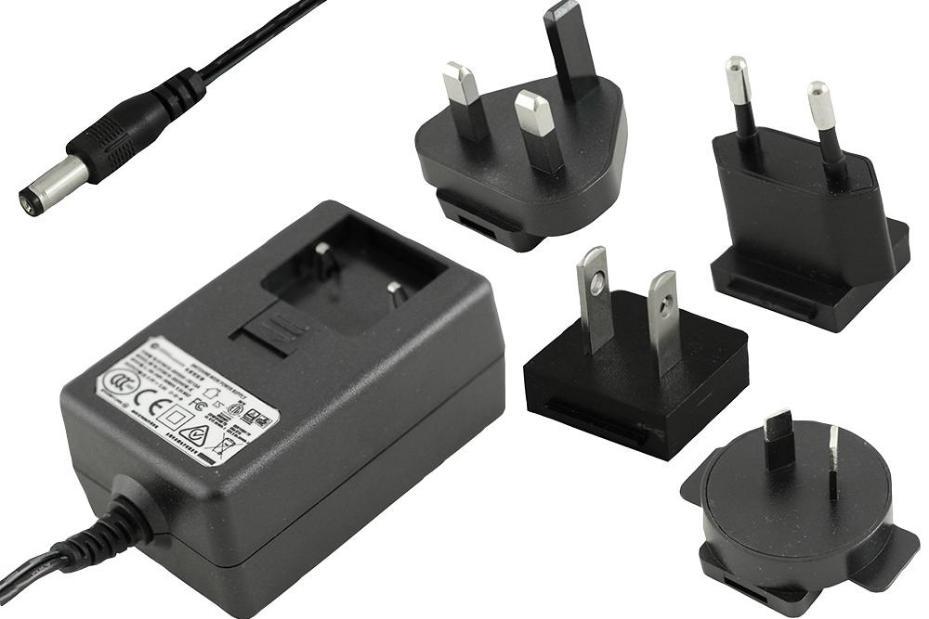

The 15DYS624-300100W-K from Ideal Power is an AC to DC interchangeable power supply. Approved to cETLus, TUV-GS, RCM (C-Tick), PSE, CCC, CB, FCC, CE standards. It is supplied with 4 interchangeable AC plugs (UK, Euro, US, Aust).
Features
- Input voltage range from 90VAC to 264VAC (full range), 47/63Hz frequency range
- Input current (RMS) is 0.8A at 90VAC and 0.4A at 264VAC
- 30VDC output voltage, ±5% voltage regulation at constant voltage mode
- 1A output current, barrel plug centre positive 2.1mm x 5.5mm output connector
- 30W maximum output power, size of 77mm x 47.5mm x 35mm
- 100% ATE tested
- NRCAN, DOE, ERP, GEMS, efficiency level VI energy saving
- Ambient operating temperature range from 0°C to 45°C
- High reliability, built-in OVP, OCP & SCP
- 100% smart burn-in test for 4hours
| Specifications | |
|---|---|
| Power Supply Applications | ITE |
| No. of Outputs | 1 Output |
| Output Power Max | 30W |
| Output Voltage - Output 1 | 30VDC |
| Output Current - Output 1 | 1A |
| Output Connector | Barrel Plug Center Positive 2.1mm x 5.5mm |
| Power Supply Output Type | Fixed |
| Input Voltage VAC | 90V AC to 264V AC |
| Plug Type | AU, EU, UK, US |
| Country of Origin: | China |
