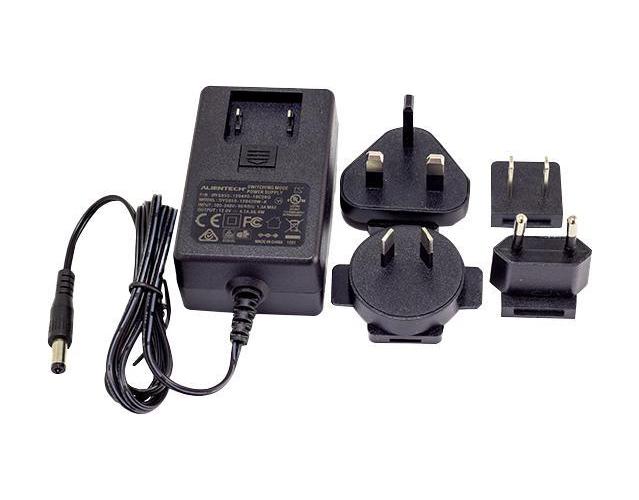

Interchangeable Power Supply, 30V DC, 1.68A, 50W, 2.1mm Plug - 15DYS650-300168W-K

Interchangeable Power Supply, 30V DC, 1.68A, 50W, 2.1mm Plug - 15DYS650-300168W-K

£21.89 GBP
£21.89 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

The 15DYS650-300168W-K from Ideal Power is an AC to DC interchangeable power supply. Certified to several international approvals to EN 60950-1 & EN 60065 standards. It is supplied with 4 interchangeable AC plugs (UK, Euro, US, Aust).

Features

  • Input voltage range from 90VAC to 264VAC (full range), 47/63Hz frequency range
  • Input current (RMS) is 1.3A at 90VAC and 0.6A at 264VAC
  • 30VDC output voltage, ±5% voltage regulation at constant voltage mode
  • 1.68A output current, barrel plug centre positive 2.1mm x 5.5mm output connector
  • 50W maximum output power, size of 84.5mm x 52mm x 36mm
  • 100% ATE tested
  • NRCAN, DOE, ERP, GEMS, efficiency level VI energy saving
  • Ambient operating temperature range from 0°C to 45°C
  • High reliability, built-in OVP, OCP & SCP
  • 100% smart burn-in test for 4hours

Specifications
Power Supply Applications ITE
No. of Outputs 1 Output
Output Power Max 50W
Output Voltage - Output 1 30VDC
Output Current - Output 1 1.68A
Output Connector Barrel Plug Center Positive 2.1mm x 5.5mm x 12mm
Power Supply Output Type Fixed
Input Voltage VAC 90V AC to 264V AC
Product Range Ideal Power - 15DYS850 Series
Plug Type AU, EU, UK, US
Country of Origin: China

EAN:
Manufacturer Part Number:
