Hinged 19" 9U Rack Mounting Cabinet - HC9U450
Hinged 19" 9U Rack Mounting Cabinet - HC9U450
Regular price
£211.19 GBP
Regular price
Sale price
£211.19 GBP
Unit price
/
per

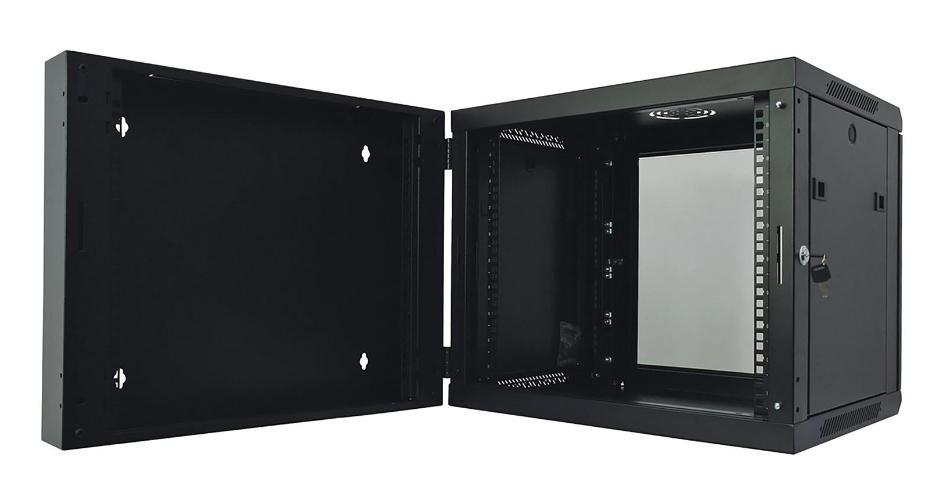

A hinged 19" rack cabinet, designated for 9U rack mounting. Features lockable front and rear door panels, with removable side panels, allowing for easy access to connections and wiring. Pre-drilled top and bottom knock-outs for cable feeding, and the front and rear rack slip is supplied for mounting to rails, enabling for easy adjustment of mounting depth. Constructed from cold rolled steel and tempered glass, finished with an epoxy powder coat to support toughness, durability and resilience enables this cabinet to take a maximum loading of 60kg.
Features
- Hinged rack cabinet with removable panels
- Removable tempered glass pane for quick access
- Lockable hinged front and rear section for easy access to connections and wiring
- Adjustable mounting depth
- Top and bottom knock-outs for cable feeds
- Suitable for 19" 9U rack mounting
- 1.2mm cold rolled steel construction with 5mm tempered glass
- Epoxy powder coating (RAL9004) for toughness and durability
- Maximum loading: 60kg
Specifications | |
---|---|
Cabinet Style | Rack Mount |
Panel Space Height | 400mm |
External Height - Metric | 500mm |
External Width - Metric | 600mm |
External Depth - Metric | 550mm |
Enclosure Material | Steel |
Body Colour | Black, Transparent |
External Height - Imperial | 19.6" |
External Width - Imperial | 23.6" |
External Depth - Imperial | 21.6" |
Product Range | Hinged 19" 9U Rack Mounting Cabinets |
Product Contents: | Panels, Rack Slips, Glass Door, Screws, Locks, 4x keys |
Country of Origin: | China |
