GPS Receiver Module, 3.3V to 5V, 56 Channel, 2.5m - TEL0094

GPS Receiver Module, 3.3V to 5V, 56 Channel, 2.5m - TEL0094

Regular price £21.79 GBP
Regular price Sale price £21.79 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

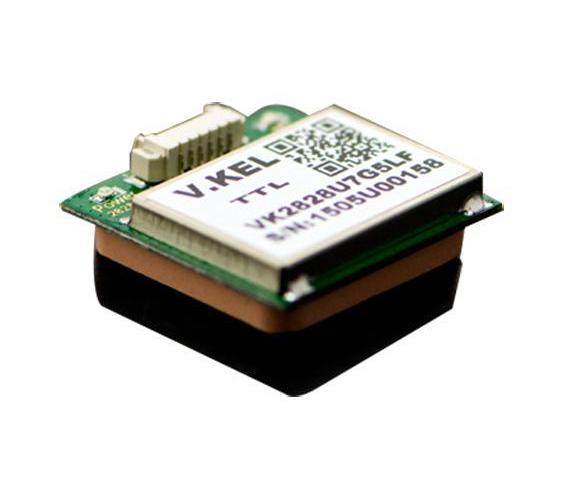

GPS module with enclosure for Arduino is a unit embedding GPS module and antenna in a small foot-print enclosure. By using TinyGPS library, Arduino can retrieve geographic coordinates (latitude and longitude, altitude), speed, heading and GMT time. The update rate is an important performance index of a GPS receiver. Most GPS in mobile phones provide an update rate of 1Hz, which means, only one set of data can be retrieved in one second. For GPS receivers with 1~10Hz, the data interval is much reduced and thus can be used for more demanding applications (e.g. on fast-moving vehicles).

Features

  • UBX-G7020-KT solution
  • 9600bps (default) (4800, 9600, 19200, 38400, 57600, 115200, 230400, 460800, 921600) TTL interface
  • 5V at 30mA (support 3.3V to 5V)
  • 56-channel receiver
  • Extremely high sensitivity -161dBm
  • Accuracy 2.5m (autonomous) / <2m[SBAS]
  • Operating temperature range from -40°C to 85°C
  • Hot start : 1s, warm start : 28s, cold start : 29s
  • Module size 28*28*8.6mm, enclosure size 37x48x16mm
  • LED indicator

Specifications
Supply Voltage Min 3.3V
Supply Voltage Max 5V
No. of Channels 56Channels
Frequency RF 10Hz
Position Accuracy 2.5m
Module Interface UART
Product Contents: GPS receiver for Arduino(Model) x 1, Enclosure x 1, Cable x 1.
Country of Origin: China

EAN:
Manufacturer Part Number:
