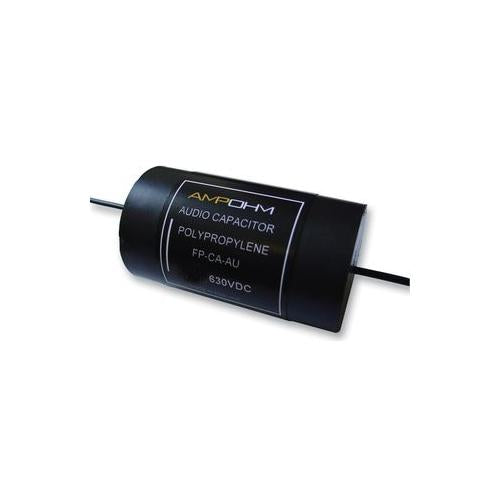

FP-CA-12-AU Ampohm Wound Products Audio Capacitor , 12Uf , 630V
FP-CA-12-AU Ampohm Wound Products Audio Capacitor , 12Uf , 630V
Regular price
£11.79 GBP
Regular price
Sale price
£11.79 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Product Features
- AUDIO CAPACITOR, 12UF, 630V
Product Details
| Capacitance: | 12µF |
| Capacitance Tolerance: | ± 5% |
| Capacitor Case Style: | (Not Applicable) |
| Capacitor Dielectric Type: | Polypropylene (PP) |
| Capacitor Terminals: | Axial Leaded |
| Life Time @ Temperature: | - |
| Operating Temperature Max: | 85°C |
| Operating Temperature Min: | -40°C |
| Packaging: | Each |
| Voltage Rating: | 630V |
| Body Diameter: | 40mm |
| Capacitor Application: | Audio |
| Capacitor Mounting: | Panel |
| External Length / Height: | 70mm |
| No. of Pins: | 2 |
| Operating Temperature Range: | -40°C to +85°C |
| Series: | FP-CA-AU |
Product Range information
The information below is for the range this product is part of and may not be information specific to the product, please contact us if you are unsure of any of the details.
Product Range Specifications
| Technical Data | |
| Tolerance | ±5% |
| Dissipation Factor | < 0.001@ 1KHz |
| Rated Voltage | 630 Vdc |
| Operating temperature | -40 |
