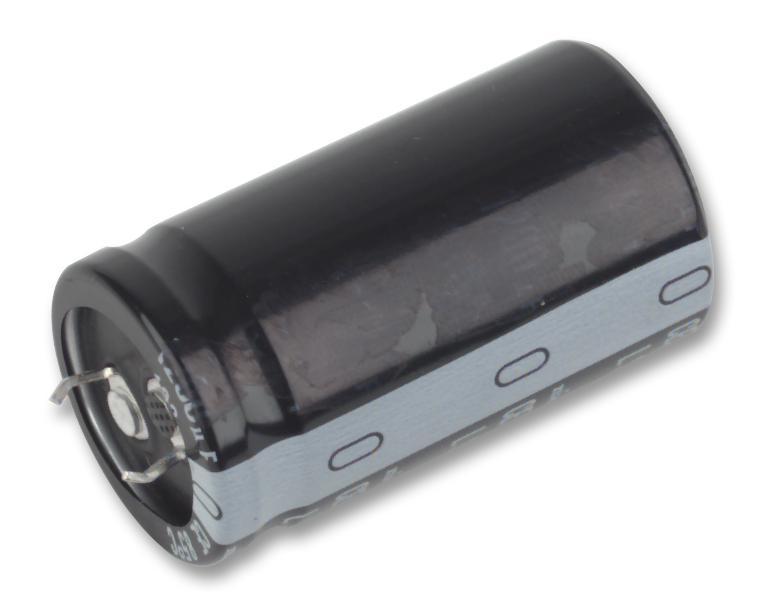

Electrolytic Capacitor, Snap-in, 12000 µF, 50 V, LPR Series, 2000 hours @ 85°C, ± 20% - MCLPR50V129M30X45
Electrolytic Capacitor, Snap-in, 12000 µF, 50 V, LPR Series, 2000 hours @ 85°C, ± 20% - MCLPR50V129M30X45
Regular price
£7.69 GBP
Regular price
Sale price
£7.69 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The Multicomp MCLPR series capacitors are snap in polarized aluminium electrolytic capacitors. These capacitors are large size capacitors with specially designed self standing terminals and can be directly soldered to printed circuit boards without holders. MCLPR capacitors can easily fix to printed circuit boards due to specially designed terminals.
Product Info
- Capacitance value ranges from 470μF to 68000μF for 10VDC to 100VDC
- Capacitance value ranges from 47μF to 2700μF for 160VDC to 450VDC
- Tolerance of ±20%
- Available in -40°C to 85°C and -25°C to 85°C temperature ranges based on rated voltage
- Multicomp products are rated 4.6 out of 5 stars
- 12 month limited warranty *view Terms & Conditions for details
- 96% of customers would recommend to a friend
| Details | |
|---|---|
| Capacitance | 12000μF |
| Voltage Rating | 50V |
| Product Range | LPR Series |
| Lifetime at Temperature | 2000 hours at 85°C |
| Capacitance Tolerance | ± 20% |
| Capacitor Terminals | Quick Connect, Snap-In |
| Diameter | 30mm |
| Lead Spacing | 10mm |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
| Height | 45mm |
| Country of Origin: | Taiwan |
