Desktop Power Supply, 30V DC, 1.68A, 34W, C8 Connector, 2.1mm Plug - 15DYS650-300168W
Desktop Power Supply, 30V DC, 1.68A, 34W, C8 Connector, 2.1mm Plug - 15DYS650-300168W
Regular price
£13.09 GBP
Regular price
Sale price
£13.09 GBP
Unit price
/
per

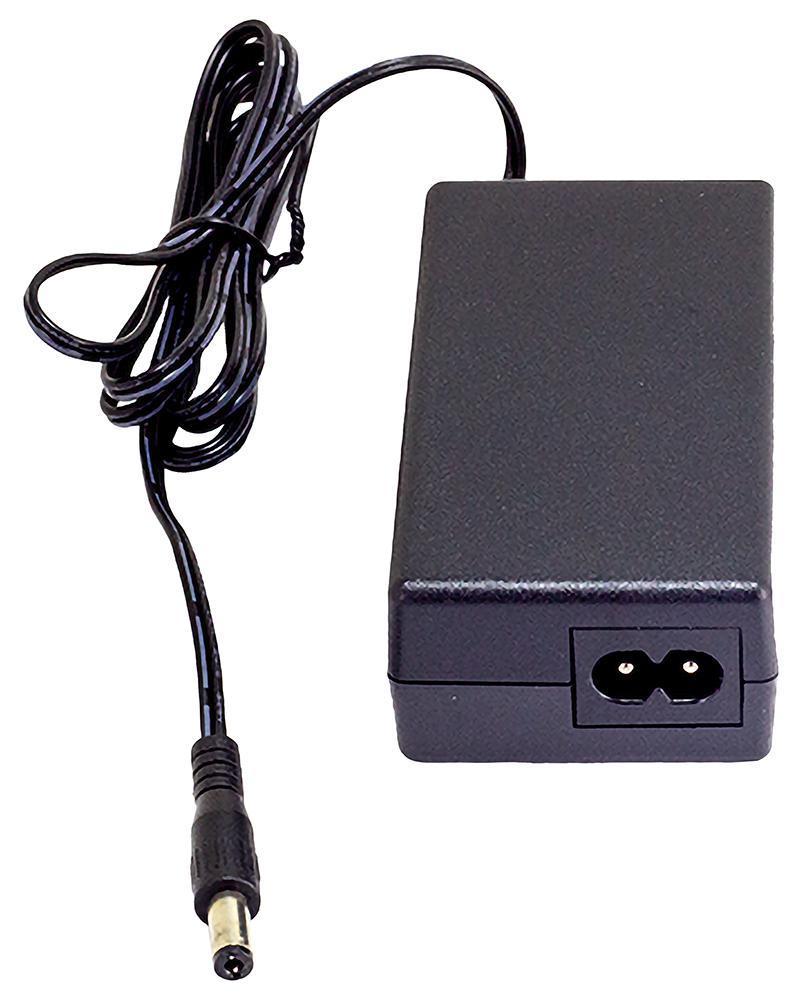

The 15DYS650-300168W from Ideal Power is a 2 pin IEC (C8) AC plug AC to DC desktop power supply. Approved to cETLus, TUV-GS, RCM (C-Tick), PSE, CCC, CB, FCC, CE standards.
Features
- Input voltage range from 90VAC to 264VAC (full range), 47/63Hz frequency range
- Input current (RMS) is 1.3A at 90VAC and 0.6A at 264VAC
- 30VDC output voltage, ±5% voltage regulation at constant voltage mode
- 1.68A output current, barrel plug centre positive 2.1mm x 5.5mm output connector
- 50W maximum output power, size of 97.5mm x 52.5mm x 32.3mm
- 100% ATE tested, class II C8 inlet
- NRCAN, DOE, ERP, GEMS, efficiency level VI energy saving
- Ambient operating temperature range from 0°C to 45°C
- High reliability, built-in OVP, OCP & SCP
- 100% smart burn-in test for 4hours
- Mains lead sold separately
Specifications | |
---|---|
Power Supply Applications | ITE |
No. of Outputs | 1 Output |
Output Power Max | 50W |
Output Voltage - Output 1 | 30VDC |
Output Current - Output 1 | 1.68A |
Output Connector | Barrel Plug Center Positive 2.1mm x 5.5mm x 12mm |
Power Supply Output Type | Fixed |
Input Voltage VAC | 90V AC to 264V AC |
Product Range | Ideal Power - 15DYS850 Series |
Plug Type | Mains Plug Sold Separately |
Country of Origin: | China |
