Desktop Power Supply, 15V DC, 3.36A, 50.4W, C8 Connector, 2.1mm Plug - 15DYS850-150336W

Desktop Power Supply, 15V DC, 3.36A, 50.4W, C8 Connector, 2.1mm Plug - 15DYS850-150336W

£20.89 GBP
£20.89 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

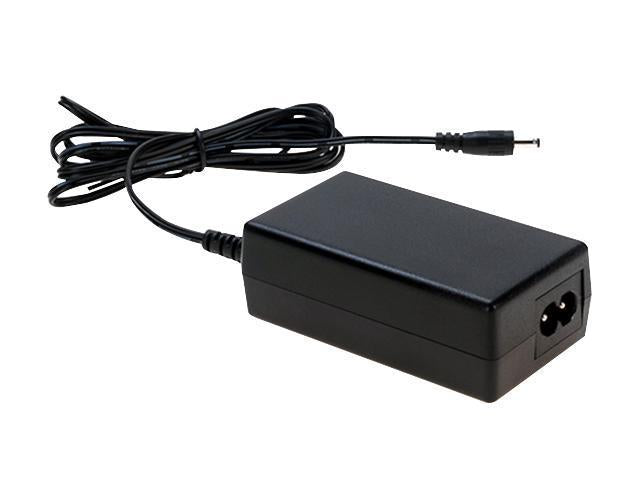

The 15DYS650-150336W from Ideal Power is a 2 pin IEC (C8) AC plug AC to DC desktop power supply. Approved to cETLus, TUV-GS, RCM (C-Tick), PSE, CCC, CB, FCC, CE standards.

Features

  • Input voltage range from 90VAC to 264VAC (full range), 47/63Hz frequency range
  • Input current (RMS) is 1.3A at 90VAC and 0.6A at 264VAC
  • 15VDC output voltage, ±5% voltage regulation at constant voltage mode
  • 3.36A output current, barrel plug centre positive 2.1mm x 5.5mm output connector
  • 50W maximum output power, size of 97.5mm x 52.5mm x 32.3mm
  • 100% ATE tested, class II C8 inlet
  • NRCAN, DOE, ERP, GEMS, efficiency level VI energy saving
  • Ambient operating temperature range from 0°C to 45°C
  • High reliability, built-in OVP, OCP & SCP
  • 100% smart burn-in test for 4hours
  • Mains lead sold separately

Specifications
Power Supply Applications ITE
No. of Outputs 1 Output
Output Power Max 50W
Output Voltage - Output 1 15VDC
Output Current - Output 1 3.36A
Output Voltage - Output 2 -V
Output Current - Output 2 -A
Output Connector 2.1mm x 5.5mm x 12mm
Output Voltage - Output 3 -V
Output Current - Output 3 -A
Power Supply Output Type Fixed
Input Voltage VAC 90V AC to 264V AC
Plug Type Mains Plug Sold Separately

EAN:
Manufacturer Part Number:
