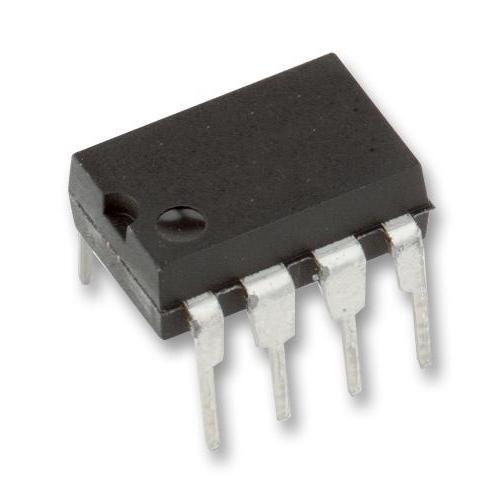

DC / DC Switched Capacitor Voltage Coverter with Regulator, 3.5V to 15V in, -5V / 100mA, DIP-8 - LT1054CP
DC / DC Switched Capacitor Voltage Coverter with Regulator, 3.5V to 15V in, -5V / 100mA, DIP-8 - LT1054CP
Couldn't load pickup availability
The LT1054CP is a switched-capacitor Voltage Converter with regulator. It provides higher output current and significantly lower voltage losses than previously available converters. An adaptive-switch drive scheme optimizes efficiency over a wide range of output currents. Total voltage drop at 100mA output current typically is 1.1V. This applies to the full supply-voltage range of 3.5 to 15V. Quiescent current typically is 2.5mA. The LT1054 also provides regulation, a feature previously not available in switched-capacitor voltage converters. By adding an external resistive divider, a regulated output can be obtained. This output is regulated against changes in both input voltage and output current. The voltage converter can also shut down by grounding the feedback terminal. Supply current in shutdown typically is 100μA. The internal oscillator of the converter runs at a nominal frequency of 25kHz.
Features
- Reference and error amplifier for regulation
- External shutdown
- External oscillator synchronization
- Devices can be paralleled
- Devices can be paralleled
- Pin-to-pin compatible with LTC1044/7660
| Specifications | |
|---|---|
| Output Type | Fixed |
| Input Voltage Min | 3.5V |
| Input Voltage Max | 15V |
| DC / DC Converter IC Case | DIP |
| No. of Pins | 8Pins |
| Output Current | 100mA |
| Fixed Output Voltage Nom. | -5V |
| Topology | Buck-Boost |
| Operating Temperature Max | 70°C |
| Important Product Warning: | This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates. |
| Country of Origin: | United States |
