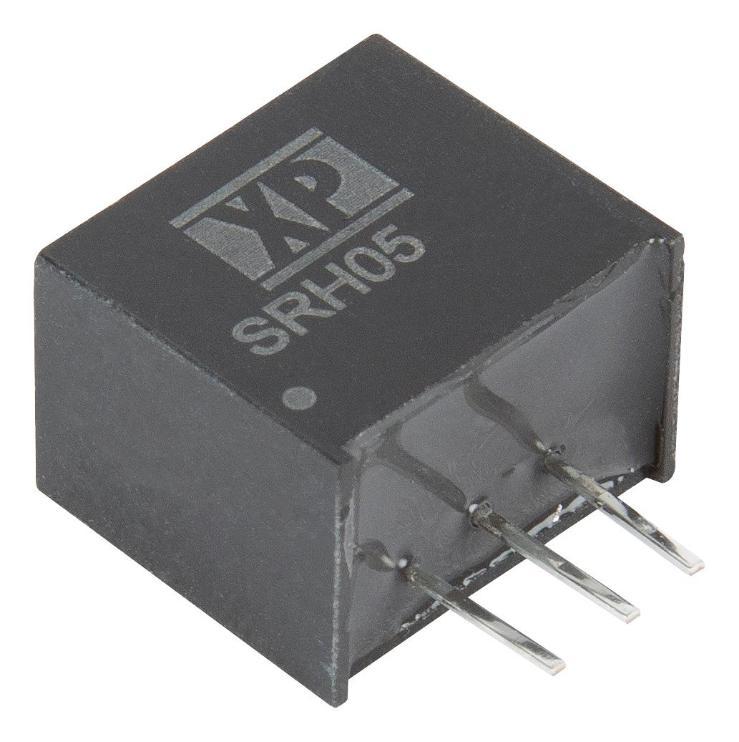

DC/DC Converter, 5V, 500mA, 2.5W - SRH05S05
DC/DC Converter, 5V, 500mA, 2.5W - SRH05S05
Regular price
£12.29 GBP
Regular price
Sale price
£12.29 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The SRH05 series ultra-wide input voltage switching regulator is pin compatible and ideally suited to replacing 78XX positive linear regulators. With efficiency up to 95%, very little energy is wasted as heat so there is no requirement for a heatsink, giving significant space saving and providing more flexibility for the PCB design. This non-isolated DC-DC converter offer a simple step-down voltage conversion and good line/load regulation, low ripple & noise with a low quiescent current (no load) of 5mA. The SRH05 provide a low-cost point of load (POL) solution for 24VDC or 48VDC distributed supply systems, sensors, robotics, telecommunications, test and measurement, portable and battery-operated equipment.
Features
- SIP package, non-conductive black plastic UL94V-0 rated case material
- Class B conducted and radiated emissions
- MTBF >4.5MHrs
- 3 year warranty
- Dimension is 11.68 x 7.5 x 10.16mm
- Input voltage is 9-72V
- Output voltage is 5V, output current is 500mA
- Maximum input current is 45mA full load (Vin)
- Maximum efficiency is 80%, maximum capacitive load is 100μF
- Operating temperature is -40 +85°C (derate from 100% load at +60°C to 40% at +85°C)
| Specifications | |
|---|---|
| No. of Outputs | 1 Output |
| Output Power Max | 2.5W |
| Output Voltage Nom | 5V |
| Output Current Max | 500mA |
| Product Range | SRH Series |
| DC / DC Converter Mounting | Through Hole |
| Input Voltage DC Min | 9V |
| Input Voltage DC Max | 72V |
| Country of Origin: | Taiwan |
