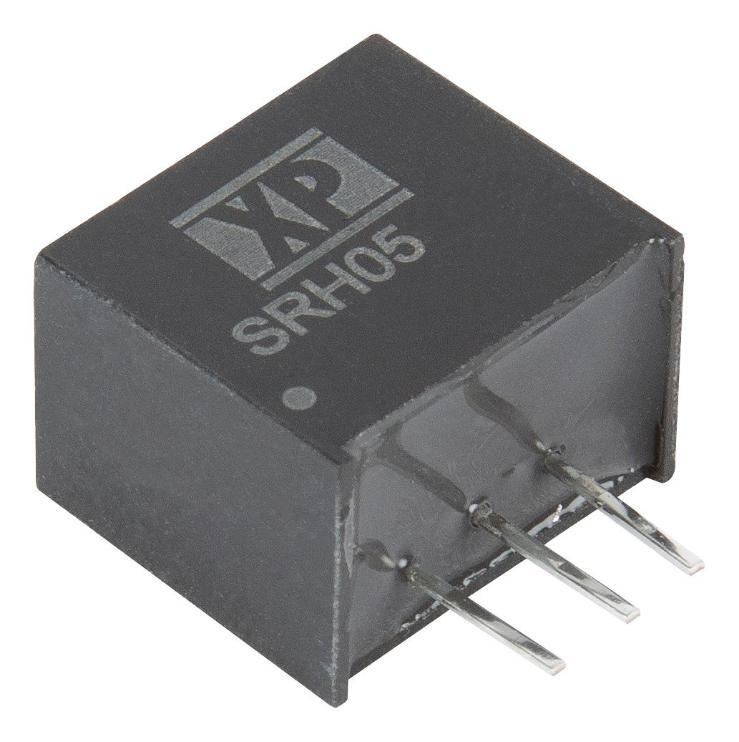

DC/DC Converter, 3.3V, 500mA, 1.65W - SRH05S3V3
DC/DC Converter, 3.3V, 500mA, 1.65W - SRH05S3V3
Regular price
£11.09 GBP
Regular price
Sale price
£11.09 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The SRH05 series ultra-wide input voltage switching regulator is pin compatible and ideally suited to replacing 78XX positive linear regulators. With efficiency up to 95%, very little energy is wasted as heat so there is no requirement for a heatsink, giving significant space saving and providing more flexibility for the PCB design. This non-isolated DC-DC converter offer a simple step-down voltage conversion and good line/load regulation, low ripple & noise with a low quiescent current (no load) of 5mA. The SRH05 provide a low-cost point of load (POL) solution for 24VDC or 48VDC distributed supply systems, sensors, robotics, telecommunications, test and measurement, portable and battery-operated equipment.
Features
- 3 pin switching regulator
- SIP Package
- Ultra Wide Input Range to 72 V
- Minus 40 °C to +85 °C Operation
- Full Load to 60 °C Ambient
- Class B Conducted & Radiated Emissions
- See Technical Note for information about XP Power's plans for the UKCA Marking
| Specifications | |
|---|---|
| No. of Outputs | 1 Output |
| Output Power Max | 1.65W |
| Output Voltage Nom | 3.3V |
| Output Current Max | 500mA |
| Product Range | SRH Series |
| DC / DC Converter Mounting | Through Hole |
| Input Voltage DC Min | 9V |
| Input Voltage DC Max | 72V |
| Country of Origin: | Taiwan |
