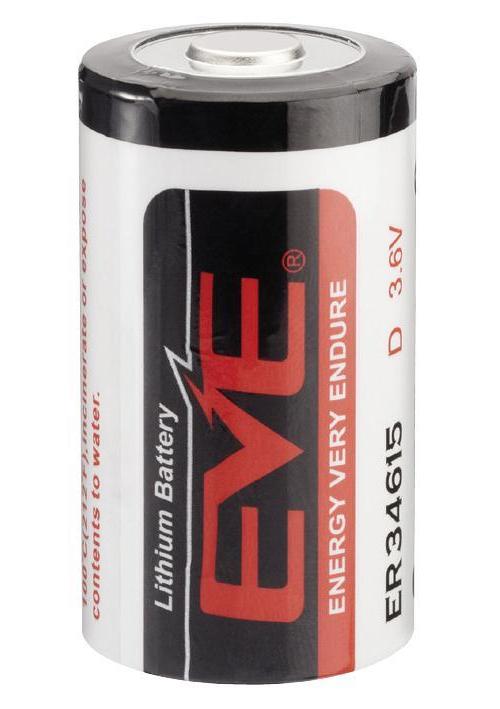

D 19Ah 3.6V Lithium Thionyl Chloride Battery - ER34615
D 19Ah 3.6V Lithium Thionyl Chloride Battery - ER34615
Regular price
£26.49 GBP
Regular price
Sale price
£26.49 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Non rechargeable lithium thionyl chloride (Li-SOCl2) battery features high and stable operating voltage, high minimum voltage during pulsing, non flammable electrolyte, stainless steel container and hermetic glass to metal sealing. Typical application includes alarms utility metering, memory back up and tracking system.
Features
- Compliant to IEC 86-4 safety and EN 50020 intrinsic safety standard
- UL recognised (file number MH28717)
- Non flammable electrolyte
- Available in D standard size
- Nominal capacity of 19.0Ah
- Nominal voltage of 3.6V
- Operating temperature range from -60°C to 85°C
- Continuous current of 100mA
- Typical weight is 100g
- Raised positive and flat negative terminals
| Specifications | |
|---|---|
| Battery Voltage | 3.6V |
| Battery Size Code | D |
| Battery Technology | Lithium Thionyl Chloride |
| Battery Capacity | 19Ah |
| Battery Terminals | Raised Positive and Flat Negative |
| External Diameter | 33.1mm |
| External Height | 61.5mm |
| Pack Quantity | 1 |
| Weight | 100g |
| Important Product Info: | Fire, explosion and severe burn hazard. Do not recharge, crush, disassemble, heat above 100 C, incinerate, or expose contents to water. |
| Important Product Warning: | Fire, explosion and severe burn hazard. Do not recharge, crush, disassemble, heat above 100 C, incinerate, or expose contents to water. |
| Country of Origin: | China |
