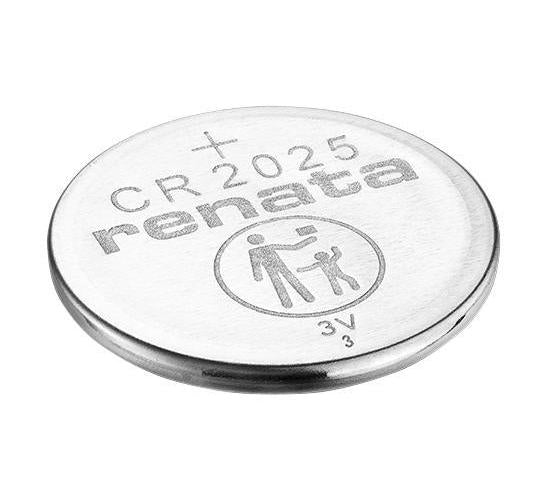

CR2025 3V Lithium Button Cell Battery - CR 2025 MFR (1BL)
CR2025 3V Lithium Button Cell Battery - CR 2025 MFR (1BL)
Regular price
£4.09 GBP
Regular price
Sale price
£4.09 GBP
Unit price
/
per
The CR 2025 MFR (1BL) is a 2025 3V/165mAh Non-rechargeable Battery features a lithium manganese dioxide technology and pressure contact terminals. Excellent solder ability to solder-plated areas. Suitable for wave-soldering. Solder contacts stainless steel AISI 301, thickness 0.15mm. Tin-plated solder area lead-free (>99.9% Sn) plated throughout, thickness minimum 2.5μm. Solder ability according to MIL-STD 883C, method 2003.3.
Features
- 0.3mA Standard discharge current
- <1%/year Self discharge at 23°C
- -30 to 70°C Operating temperature range
Specifications | |
---|---|
Battery Voltage | 3V |
Battery Size Code | 2025 |
Battery Technology | Lithium Manganese Dioxide |
Battery Capacity | 165mAh |
Battery Terminals | Pressure Contact |
External Diameter | 20mm |
External Height | 2.5mm |
Pack Quantity | 1 |
Weight | 2.5g |
Battery IEC Code | CR2025 |
Battery NEDA Code | 5003LC |
Important Product Warning: | Coin batteries must be kept out of reach of children, consult a doctor immediately if swallowed. |
Country of Origin: | Indonesia |
