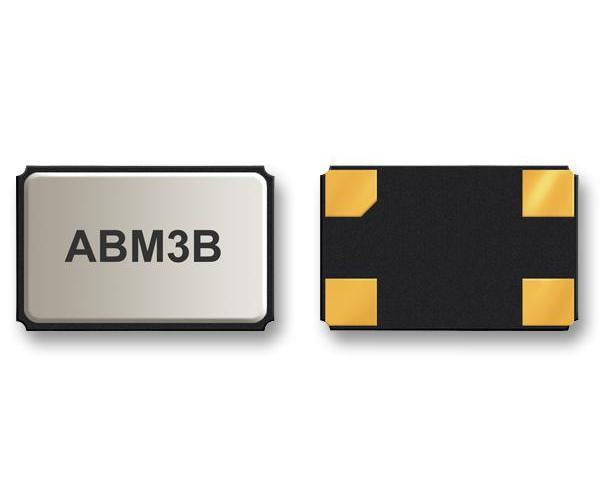

Ceramic SMD Crystal, 5mm x 3.2mm, 50ppm, 18pf - ABM3B-25.000MHZ-B2-T
Ceramic SMD Crystal, 5mm x 3.2mm, 50ppm, 18pf - ABM3B-25.000MHZ-B2-T
Regular price
£2.29 GBP
Regular price
Sale price
£2.29 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The ABM3B-25.000MHZ-B2-T is a 5.0 x 3.2 x 1.1mm Ceramic SMD Crystal with frequency range of 8 to 50MHz, load capacitance of 18pF. Tight stability available and seam sealing. Ceramic package and metal lid assures high precision and reliability.
Features
- Ageing ±5ppm per year (maximum)
- 500MR Insulation resistance
- Fundamental mode
- Suitable for reflow
| Specifications | |
|---|---|
| Frequency Nom | 25MHz |
| Crystal Case | SMD, 5mm x 3.2mm |
| Frequency Stability + / - | 50ppm |
| Load Capacitance | 18pF |
| Frequency Tolerance + / - | 20ppm |
| Product Range | ABM3B |
| Operating Temperature Min | -20°C |
| Operating Temperature Max | 70°C |
| Important Product Warning: | Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts. |
| Country of Origin: | Japan |
