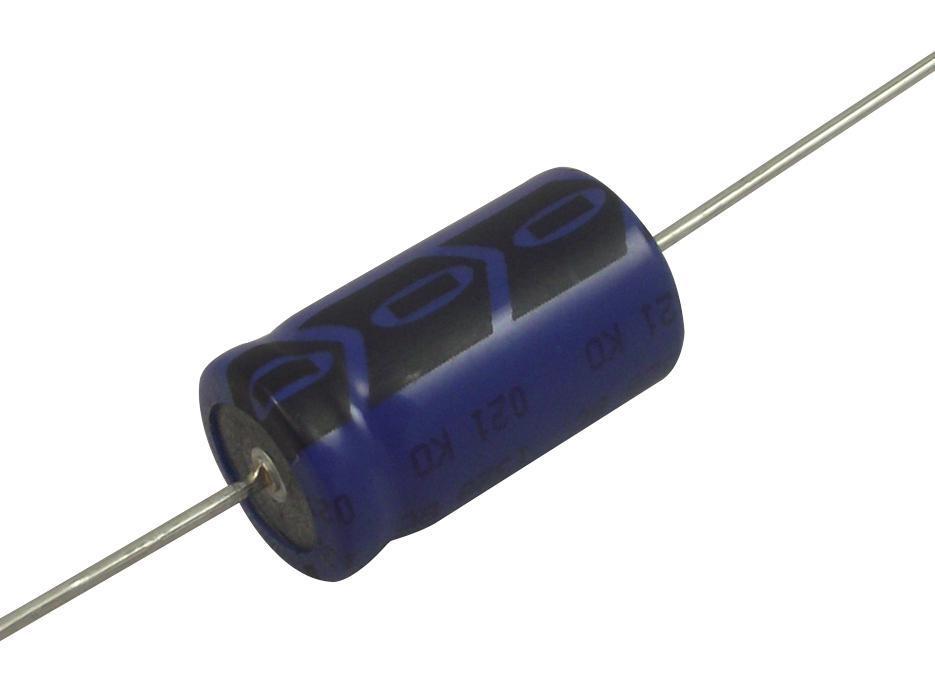

Aluminum Electrolytic Capacitor, 1000uF, 40V - MAL213817102E3
Aluminum Electrolytic Capacitor, 1000uF, 40V - MAL213817102E3
The MAL213817102E3 is an axial leaded miniature polarized Aluminium Electrolytic Capacitor feature non-solid electrolyte. The 138 AML series electrolytic capacitor provides very high ripple current capability. In general, aluminium capacitor is the most suitable capacitor for addressing requirements such as low and high frequency filtering and energy storage, which demand high capacitance values and power ratings. The device offers high CU/(unit cost) ratios, is small compared with other technologies and is relatively insensitive to voltage spikes. An electrochemically etched aluminium anode foil forms the first plate of the capacitor. An oxide layer on the etched aluminium foil that forms the dielectric. A paper spacer impregnated with fluid electrolyte in contact with the oxide layer to form the second plate of the capacitor. A second foil that forms the other contact with the fluid electrolyte.
Features
- Cylindrical case with pressure relief
- Insulated with a blue sleeve
- Charge and discharge proof
- Input buffer provides energy when mains input voltage is too low
- Input buffer stores energy while AC/DC converter, e.g. PFC controller, adapts to a new power level
- Input buffer prevents HF switching noise from the DC/DC converter reaching power source
- Output buffer - Current sink for inductor (current to voltage conversion), filtering
- Output buffer - Buffer energy while DC/DC converter adapts to changed power output
Specifications | |
---|---|
Capacitance | 1000μF |
Voltage(DC) | 40V |
Capacitance Tolerance | ± 20% |
Capacitor Terminals | Axial Leaded |
Lifetime at Temperature | 10000 hours at 105°C |
Polarity | Polar |
Capacitor Case / Package | Axial Leaded |
Product Diameter | 15mm |
Product Length | 30mm |
Product Range | 138 AML |
ESR | 0.17ohm |
Ripple Current | 970mA |
Operating Temperature Min | -40°C |
Operating Temperature Max | 105°C |
Country of Origin: | Austria |
