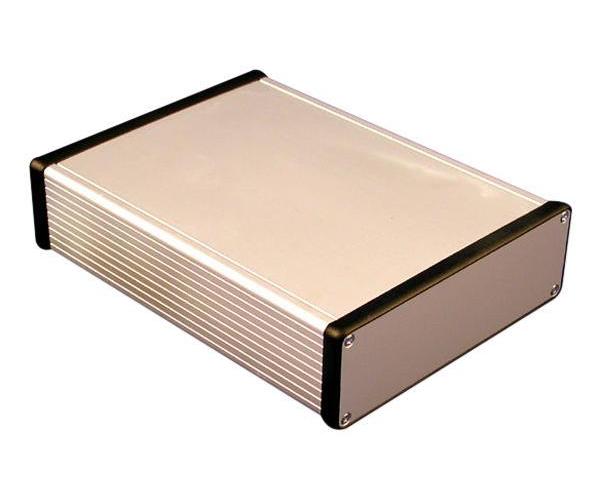

Aluminium Enclosure, Metal End Panels, 78x27x120mm - 1455J1201
Aluminium Enclosure, Metal End Panels, 78x27x120mm - 1455J1201
Regular price
£25.09 GBP
Regular price
Sale price
£25.09 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The 1455J1201 is a PCB Box, designed to house PC boards or for equipment interfacing. PC boards mount horizontally by sliding into internal slots extruded into the enclosure body. Rugged body constructed from extruded aluminium with a minimum thickness of 0.06-inch (1.5mm). Extruded body includes a slide removable "belly" plate.
Features
- Sized for standard eurocards
- Clear anodized finish
- Two aluminium end panels
- Allows easy access to interior of enclosure
- Allows easy access to the interior of enclosure
| Specifications | |
|---|---|
| Enclosure Type | Small |
| Enclosure Material | Extruded Aluminium |
| External Height - Metric | 27mm |
| External Width - Metric | 78mm |
| External Depth - Metric | 120mm |
| IP Rating | IP54 |
| Body Colour | Natural |
| External Height - Imperial | 1.06" |
| External Width - Imperial | 3.07" |
| External Depth - Imperial | 4.72" |
| Product Range | 1455 |
| Country of Origin: | Canada |
