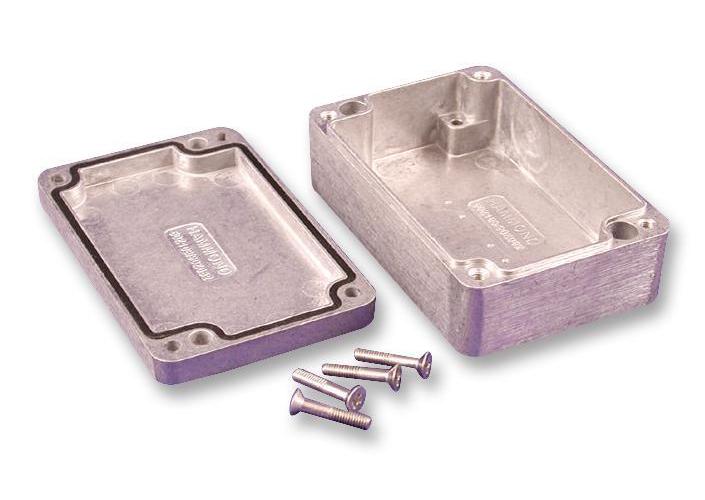

Aluminium Enclosure, 64x34x98, IP66 - 1550Z103
Aluminium Enclosure, 64x34x98, IP66 - 1550Z103
Regular price
£14.19 GBP
Regular price
Sale price
£14.19 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Very economical - thick wall - die-cast aluminum - watertight electronic instrument enclosure.
Features
- Rugged, diecast aluminum alloy (tough - yet easy to machine)
- Two-piece 'tongue and groove' construction for protection against access of dust and water
- Ideal for repetitive opening and closing
- Easy to wall mount using 'through box - blind hole' construction
- Vibra finished for a smooth surface with no sharp edges
- Lid secured with stainless steel, Philips head, counter sunk, machine screws - into factory tapped holes
- Lid screws are outside the gasket protection area to eliminate the need for 'O' rings on the screws
- Gasket is pre-formed, one-piece silicone rubber and installs easily into lid groove
- Impact rating of IK08 per IEC62262
- No internal ribs for easy installation of connectors without interference or additional milling
- IP66 rated
| Specifications | |
|---|---|
| Enclosure Type | Small |
| Enclosure Material | Diecast Aluminium |
| External Height - Metric | 98.4mm |
| External Width - Metric | 64.4mm |
| External Depth - Metric | 34.4mm |
| IP Rating | IP66 |
| Body Colour | Unfinished |
| NEMA Rating | NEMA 1, 4, 4X, 12, 13 |
| External Height - Imperial | 3.87" |
| External Width - Imperial | 2.54" |
| External Depth - Imperial | 1.35" |
| Product Range | 1550Z |
| Country of Origin: | Taiwan |
