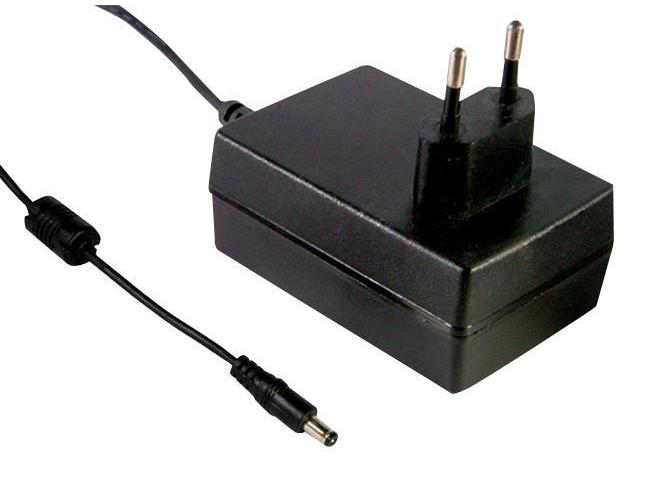

AC/DC Power Supply, Medical Approved, 12V, 3A, 36W - GSM36E12-P1J

AC/DC Power Supply, Medical Approved, 12V, 3A, 36W - GSM36E12-P1J

Regular price £26.69 GBP
Regular price Sale price £26.69 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

GSM36E is a highly reliable, 36W wall-mounted style single-output green medical adaptor series. This product is equipped with a 2-pin (no FG) standard European power plug, adopting the input range from 80VAC to 264VAC. The circuitry design meets the international medical standards (2x MOPP), having an ultra low leakage current (<50μA), fitting the medical devices in direct electrical contact with the patients. With the efficiency up to 88% and the extreme low no-load power consumption below 0.1W, GSM36E is compliant with EU ErP and meet Code of Conduct(CoC) Version 5; the supreme feature allows the adaptor to save the energy when it is either under the operating mode or the standby mode. The entire series utilizes the 94V-0 flame retardant plastic case, providing the double insulation that effectively prevents electrical shock. GSM36E is approved with the international medical safety certificates.

Features

  • Universal AC input/Full range
  • 2-pole EURO plug
  • Medical safety approved (2x MOPP between primary to secondary)
  • Suitable for BF application with appropriate system consideration
  • Low leakage current <50μA
  • No load power consumption <0.1W
  • Energy efficiency Level V1 (except 5-9V for Level V)
  • Comply with EU ErP and meet CoC Version 5
  • High efficiency up to 88%
  • High operating temperature up to +60°C
  • Class II power (without earth pin)
  • Protections: Short circuit / Overload / Over voltage
  • Fully enclosed plastic case
  • LED indicator for power on
  • Optional lock type DC plug
  • 100% full load burn-in test
  • 3-years warranty

Specifications
Power Supply Applications Medical
No. of Outputs 1 Output
Output Power Max 36W
Output Voltage - Output 1 12VDC
Output Current - Output 1 3A
Output Connector Barrel Plug Center Positive 2.1mm x 5.5mm x 11mm
Power Supply Output Type Fixed
Input Voltage VAC 80V AC to 264V AC
Product Range GSM36E Series
Plug Type EU
Important Product Warning: Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Country of Origin: China

EAN:
Manufacturer Part Number:
