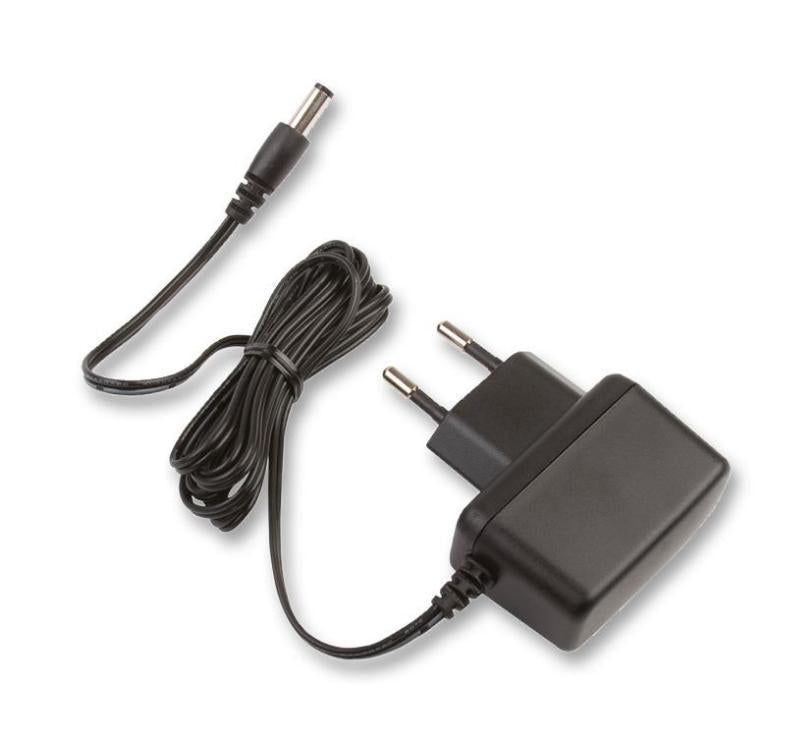

AC/DC Power Supply, EU Plug, 24V, 750mA, 18W, 2.1mm Plug - VEL18US240-EU-JA
AC/DC Power Supply, EU Plug, 24V, 750mA, 18W, 2.1mm Plug - VEL18US240-EU-JA
Regular price
£16.39 GBP
Regular price
Sale price
£16.39 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The VEL18 series of wall plug adaptors comply with the very latest energy efficiency VI standards with high active mode efficiency and extremely low no load power consumption. Available with a standard jack plug connector these adaptors suit a wide variety of cost sensitive applications while maintaining industry leading performance.
Features
- Energy efficiency level VI
- European CoC Tier 2
- Fixed Mains Connectors
- Universal Input
- Class II Construction
- Output Voltages from 9V to 24V
- Output connector is 5.5mm x 2.1mm x 12mm DC jack
- Operating temperature range from 0°C to 60°C
- UL/cUL60950-1, IEC60950-1, TUV EN60950-1, CCC safety standards
- Dimension is 90mm x 34mm x 57.57mm
- See Technical Note for information about XP Power's plans for the UKCA Marking
| Specifications | |
|---|---|
| Power Supply Applications | ITE |
| No. of Outputs | 1 Output |
| Output Power Max | 18W |
| Output Voltage - Output 1 | 24VDC |
| Output Current - Output 1 | 750mA |
| Output Connector | Barrel Plug Center Positive 2.1mm x 5.5mm x 12mm |
| Power Supply Output Type | Fixed |
| Input Voltage VAC | 90V AC to 264V AC |
| Product Range | VEL18 Series |
| Plug Type | EU |
| Country of Origin: | China |
