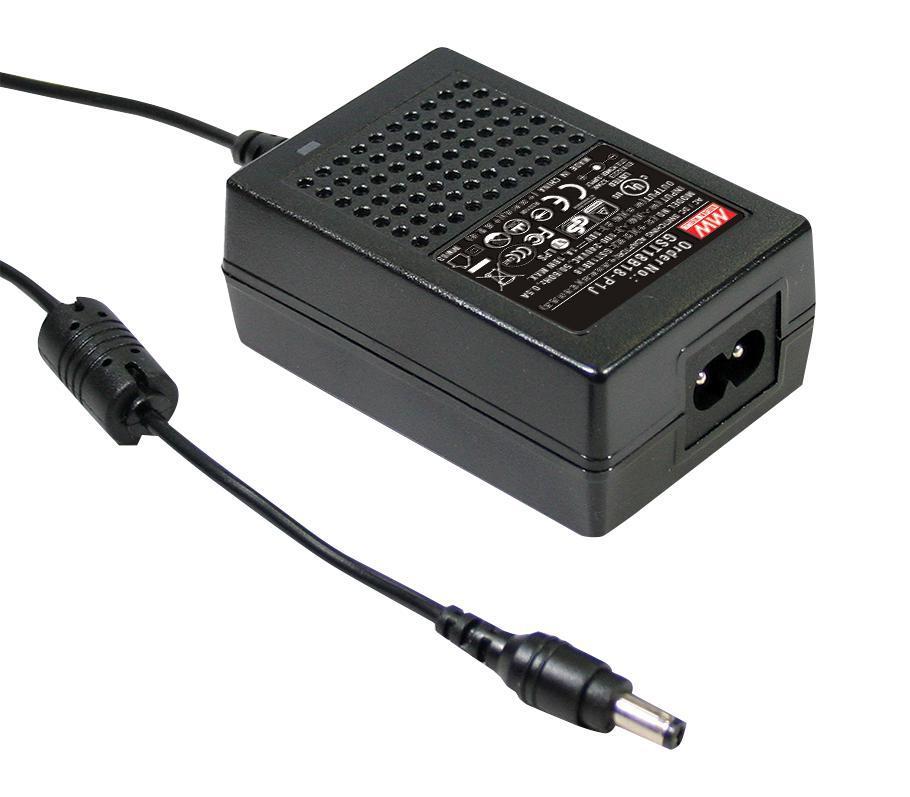

AC/DC Power Supply, 5V, 3A, 15W, 2.1mm Plug - GST18B05-P1J
AC/DC Power Supply, 5V, 3A, 15W, 2.1mm Plug - GST18B05-P1J
Regular price
£20.69 GBP
Regular price
Sale price
£20.69 GBP
Unit price
/
per
GST18B is a highly reliable, 18W desktop style single-output green adaptor series. This product is a class II power unit (without FG), equipped with a standard 1EC320-C8 AC inlet and adopting the input range from 85VAC to 264VAC.
Features
- Universal AC input/Full range
- 2-pole AC inlet 1EC320-C8
- No load power consumption < 0.075W
- Energy efficiency Level VI
- Comply with EISA 2007/DoE, NRCan, AU/NZ MEPS, EU ErP and CoC Version 5
- Class II power (without earth pin)
- Protections: Short circuit / Overload / Over voltage
- Fully enclosed plastic case
- Pass LPS
- High operating temperature up to +70°C
- LED indicator for power on
- 3-years warranty
Specifications | |
---|---|
Power Supply Applications | ITE |
No. of Outputs | 1 Output |
Output Power Max | 15W |
Output Voltage - Output 1 | 5VDC |
Output Current - Output 1 | 3A |
Output Connector | Barrel Plug Center Positive 2.1mm x 5.5mm x 11mm |
Power Supply Output Type | Fixed |
Input Voltage VAC | 85V AC to 264V AC |
Product Range | GST18B Series |
Important Product Warning: | Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts. |
Country of Origin: | China |
