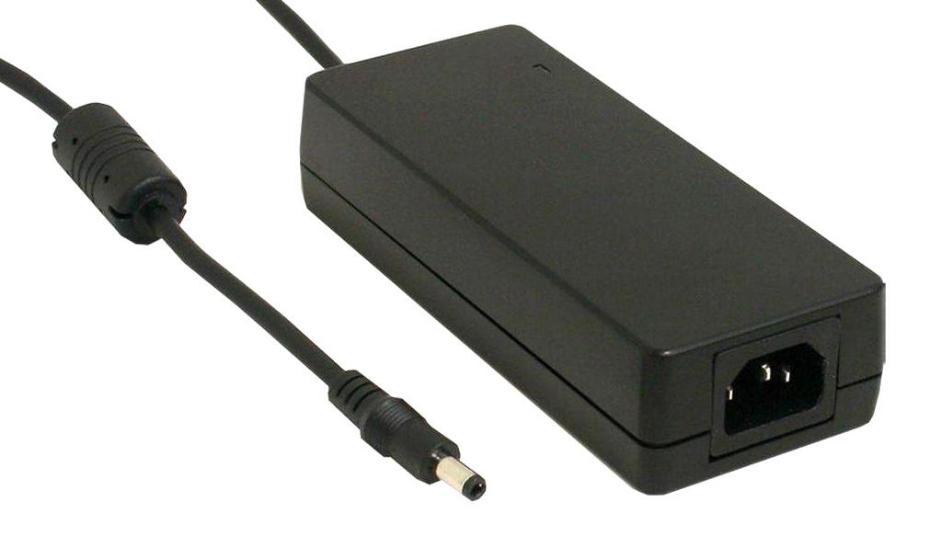

AC/DC Power Supply, 24V, 5A, 120W, 2.5mm Plug - GST120A24-P1M
AC/DC Power Supply, 24V, 5A, 120W, 2.5mm Plug - GST120A24-P1M
Regular price
£64.49 GBP
Regular price
Sale price
£64.49 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
GST120A24-P1M is GS120 series 120W AC-DC industrial adaptor. It comply with EISA 2007, NRCan, AU/NZ MEPS and EU ErP. It includes short circuit, overload, over voltage, over temperature. Approved by UL60950-1, CSA C22.2, TUV EN60950-1, PSE J60950-1(except for 48V).
Features
- Output DC voltage is 24V, output rated current is 5A, output rated power is 120W
- Input voltage range from 85 to 264VAC, 120 to 370VDC, efficiency is 81%
- Universal AC input / full range, built-in active PFC function
- No load power consumption<0.5W, energy efficiency Level V
- 3 pole AC inlet IEC320-C14, class I power
- Fully enclosed plastic case, LED indicator for power on
- Working temperature range from -30 to +70°C
- 2 years warranty
- Dimension (L x W x H) is 167 x 67 x 35mm
| Specifications | |
|---|---|
| Power Supply Applications | ITE |
| No. of Outputs | 1 Output |
| Output Power Max | 120W |
| Output Voltage - Output 1 | 24VDC |
| Output Current - Output 1 | 5A |
| Output Connector | Barrel Plug Center Positive 2.5mm x 5.5mm x 11mm |
| Power Supply Output Type | Fixed |
| Input Voltage VAC | 85V AC to 264V AC |
| Product Range | GST120A Series |
| Important Product Warning: | Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts. |
| Country of Origin: | China |
