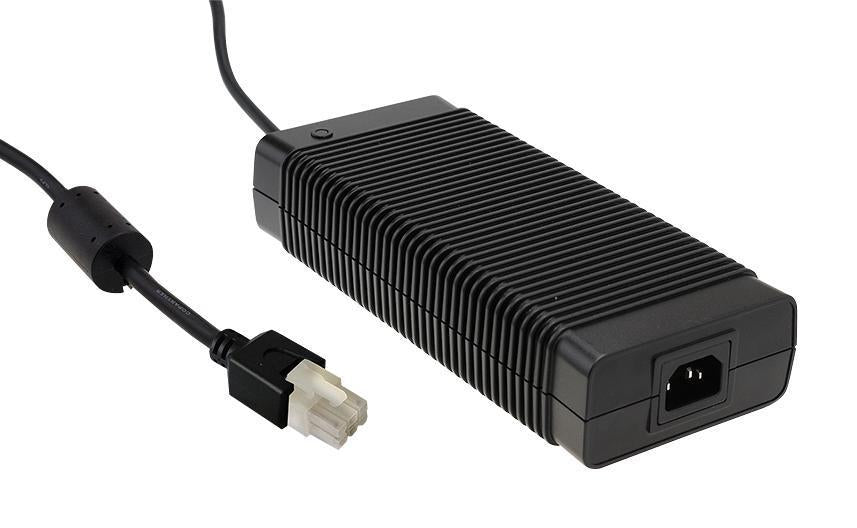

AC/DC Power Supply, 20V, 13A, 260W, Molex Plug - GST280A20-C6P
AC/DC Power Supply, 20V, 13A, 260W, Molex Plug - GST280A20-C6P
Regular price
£121.59 GBP
Regular price
Sale price
£121.59 GBP
Unit price
/
per
GST280A is a highly reliable, 280W desktop style single-output green adaptor series. This product is a Class I power unit (with FG), equipped with a standard IEC320-C14 AC inlet and adopting the input range from 85VAC to 264VAC.
Features
- Universal AC input/full range
- 3-pole AC inlet IEC320-C14
- Built-in active PFC function
- No load power consumption <0.15W
- Energy efficiency Level VI
- Comply with EISA 2007/DoE, NRCan, AU/NZ MEPS,EU ErP and CoC Version 5
- Class I power (with earth pin)
- Protections: Short ircuit/Overload/Over-voltage
- /Over-temperature
- Fanless design with -30 to +70°C working temperature
- Fully enclosed plastic case
- LED indicator for power on
- 3 years warranty
Specifications | |
---|---|
Power Supply Applications | ITE |
No. of Outputs | 1 Output |
Output Power Max | 260W |
Output Voltage - Output 1 | 20VDC |
Output Current - Output 1 | 13A |
Output Connector | 6 Way Molex Connector |
Power Supply Output Type | Fixed |
Input Voltage VAC | 85V AC to 264V AC |
Product Range | GST280A Series |
Important Product Warning: | Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts. |
Country of Origin: | China |
