AC/DC Plug Top Power Supply, 9V DC, 1.6A, 14.4W, 2.1mm Plug - 15DYS618-090160W-3
AC/DC Plug Top Power Supply, 9V DC, 1.6A, 14.4W, 2.1mm Plug - 15DYS618-090160W-3
Regular price
£10.79 GBP
Regular price
Sale price
£10.79 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

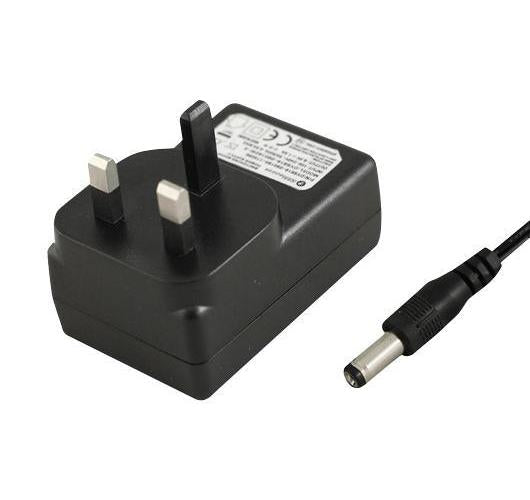

The 15DYS618-090160W-3 from Ideal Power is an AC to DC UK plugtop power supply.
Features
- Input voltage range from 90VAC to 264VAC (full range), 47/63Hz frequency range
- Input current (RMS) is 0.5A at 90VAC and 0.2A at 264VAC
- 9VDC output voltage, ±5% voltage regulation at constant voltage mode
- 1.6A output current, barrel plug centre positive 2.1mm x 5.5mm output connector
- 14.4W maximum output power, size of 77mm x 50mm x 37mm
- 100% ATE tested
- NRCAN, DOE, ERP, GEMS, efficiency level VI energy saving
- Ambient operating temperature range from 0°C to 45°C
- High reliability, built-in OVP, OCP & SCP
- 100% smart burn-in test for 4hours
| Specifications | |
|---|---|
| Power Supply Applications | ITE |
| No. of Outputs | 1 Output |
| Output Power Max | 14.4W |
| Output Voltage - Output 1 | 9VDC |
| Output Current - Output 1 | 1.6A |
| Output Connector | Barrel Plug Center Positive 2.1mm x 5.5mm x 12mm |
| Power Supply Output Type | Fixed |
| Input Voltage VAC | 90V AC to 264V AC |
| Plug Type | UK |
| Country of Origin: | China |
