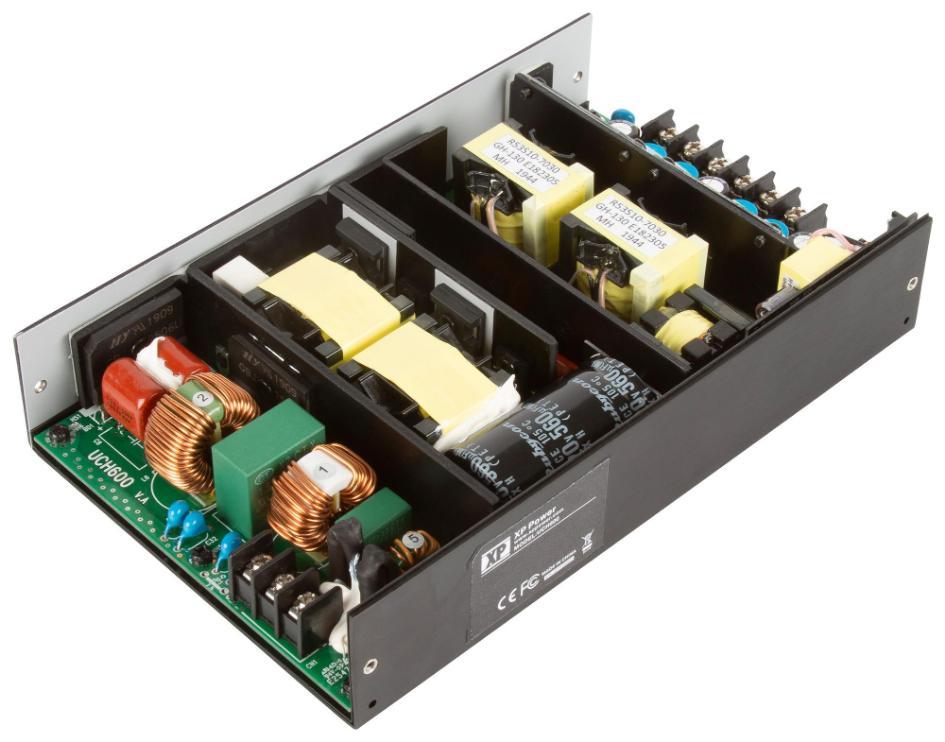

AC/DC Open Frame Power Supply, Medical Approved, 24V, 25A, 600W - UCH600PS24
AC/DC Open Frame Power Supply, Medical Approved, 24V, 25A, 600W - UCH600PS24
Approved for medical and ITE applications, this range of convection cooled single output AC/DC power supplies are packaged in an ultra compact foot print of just 5.0" by 8.0". The UCH600 provides up to 600 W convection-cooled leading to very high power density of 9.5 W/in3 . A 12 V/0.6 A fan supply is included in the design to faciliate system cooling, if required, along with 5 V/1 A standby output. The power supply contains two fuses and low leakage currents as required by medical applications and is safety approved to operate in a 70 °C ambient. The low profile and safety approvals covering ITE and medical standards along with conducted emissions to EN55011/22 level Ballow the versatile UCH600 series to be used in a vast range of applications.
Features
- Convection cooled
- Medical and ITE approvals
- Compact 5.0" by 8.0" footprin
- Suitable for BF applications
- 5 V standby and remote on/off
- 12 V fan output
- -20°C to +70°C operation
- High efficiency, up to 95%
- See Technical Note for information about XP Power's plans for the UKCA Marking
Specifications | |
---|---|
Power Supply Applications | ITE & Medical |
No. of Outputs | 1 Output |
Power Rating (Convection Cooling) | 600W |
Input Voltage VAC | 90V AC to 264V AC |
Power Supply Output Type | Fixed |
Output Voltage - Output 1 | 24VDC |
Output Current - Output 1 | 25A |
Product Range | UCH600 Series |
Country of Origin: | Taiwan |
