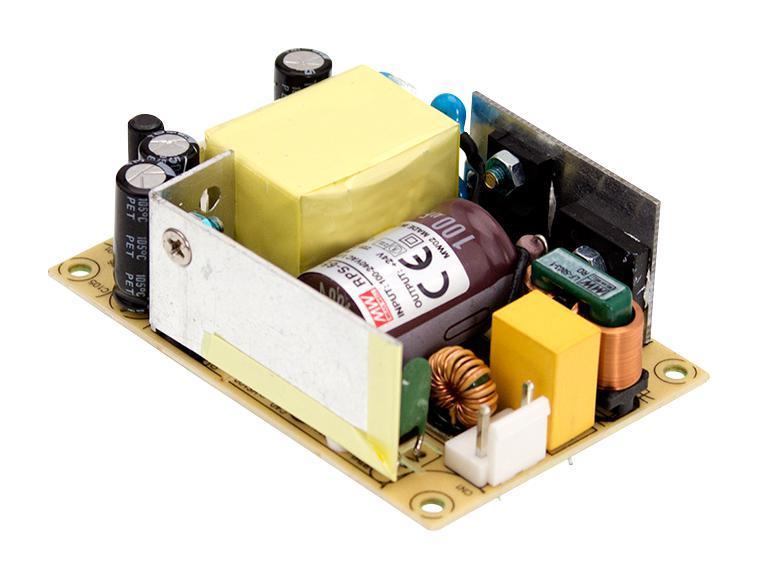

AC/DC Open Frame Power Supply, Medical Approved, 15V, 4.34A, 65.1W - RPS-65-15
AC/DC Open Frame Power Supply, Medical Approved, 15V, 4.34A, 65.1W - RPS-65-15
Regular price
£28.79 GBP
Regular price
Sale price
£28.79 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
RPS-65 series is a 65W highly reliable green PCB type medical power supply with a high power density on the 3" by 2" footprint. In addition, it conforms to international medical regulations (2*MOPP) and EMC BS EN/EN55011, perfectly fitting all kinds of BF rated "patient contact" medical system equipment. Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1. Application includes oral irrigator, hemodialysis machine, medical computer monitors, sleep apnea devices. Approved by IEC60601-1, TUV BS EN/EN60601-1, EAC TP TC 004, UL ANSI / AAMI ES60601-1 (3.1 version), CAN/CSA-C22.2 No. 60601-1:14 - Edition 3, design refer to BS EN/EN60335-1.
Features
- Input voltage range from 80 to 264VAC, DC voltage of 15VDC
- 76.2mm x 50.2mm compact size
- Efficiency is 89%
- Suitable for BF application with appropriate system consideration
- Cooling by free air convection
- EMI class B for class II configuration
- No load power consumption<0.1W
- Extremely low leakage current, -30 to 70°C working temperature range
- Short circuit / overload / over voltage protections
- 3 years warranty, 76.2 x 50.8 x 24mm dimension
| Specifications | |
|---|---|
| Power Supply Applications | Medical |
| No. of Outputs | 1 Output |
| Power Rating (Convection Cooling) | 65.1W |
| Input Voltage VAC | 80V AC to 264V AC |
| Power Supply Output Type | Adjustable, Fixed |
| Output Voltage - Output 1 | 15VDC |
| Output Current - Output 1 | 4.34A |
| Product Range | RPS-65 Series |
| Important Product Warning: | Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts. |
| Country of Origin: | China |
