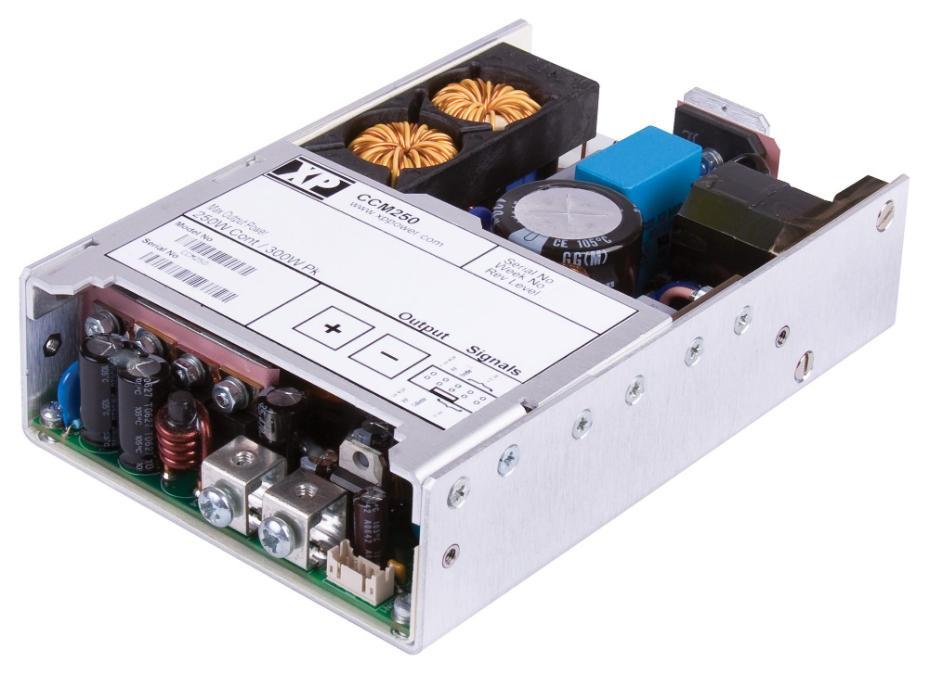

AC/DC Open Frame Power Supply, 27V, 8.9A, 250W - CCM250PS28
AC/DC Open Frame Power Supply, 27V, 8.9A, 250W - CCM250PS28
Regular price
£384.99 GBP
Regular price
Sale price
£384.99 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
CCM250PS28 is a CCM series single phase AC-DC converter. It features overvoltage, overload and short circuit protection. Certified by IEC60950-1, CSA 22.2 No. 60950-1, UL60950-1, TUV EN60950-1, IEC60601-1 CB report, CSA 22.2 No.60601-1, UL60601-1, TUV 60601-1, IEC62368-1, UL62368-1, CSA C22.2, No62368-1, EN62368-1.
Features
- Input voltage range from 80 to 275VAC, output voltage is 28VDC (V1)
- Output current is 8.9A/10.70A (nominal/peak), output power is 250W (nominal)
- Very high efficiency up to 95%, class B conducted and radiated emissions
- IT, industrial and medical safety approvals
- Isolation is 4000VAC (input to output)
- Switching frequency range from 30 to 500KHz (PFC), 25.6KHz (boost), 51.2KHz (main)
- 3 year warranty
- Operating temperature range from -20 to +70°C
| Specifications | |
|---|---|
| Power Rating (Convection Cooling) | 250W |
| Output Voltage - Output 1 | 28VDC |
| Output Current - Output 1 | 8.9A |
| Output Voltage - Output 2 | -V |
| Output Current - Output 2 | -A |
| Output Voltage - Output 3 | -V |
| Output Current - Output 3 | -A |
| Output Voltage - Output 4 | -V |
| Current, Output 4 | -A |
| Country of Origin: | Vietnam |
