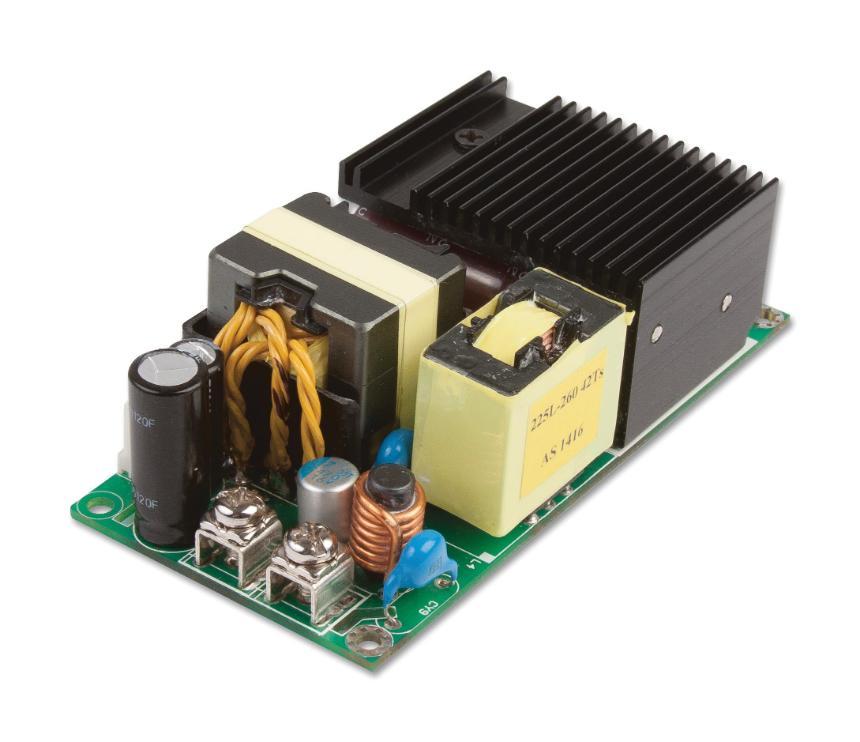

AC/DC Open Frame Power Supply, 24V, 6.25A, 225W - EPL225PS24
AC/DC Open Frame Power Supply, 24V, 6.25A, 225W - EPL225PS24
Couldn't load pickup availability
EPL225 series is an open frame AC-DC power supply with medical (2 x MOPP) and ITE approvals. The EPL225 series maximises efficiency across the load range and minimises no load power consumption minimising heat dissipation, reducing running costs and enabling compliance with the latest environmental goals and legislation. The small footprint, low profile, low noise and comprehensive safety agency approvals allow this versatile product to be used in a wide range of ITE and industrial applications with either class I or class II earth arrangements. Safety approvals are IEC62368-1, EN62368-1, UL62368-1, CSA22.2 No. 234 per cUL, IEC60601: 2005 + A1, ES60601: 2005/(R)2012 CSA C22.2 No.60601-1: 2014, EN60601: 2006 + A12.
Features
- High power density
- Less than 0.5W no load input power
- 3 year warranty
- Output power is 225W, dimension is 101.6 x 50.8 x 32.3mm
- Output voltage is 24V
- Output current is 6.25A convection-cooled, 9.38A forced-cooled
- Fan output is 12V/0.5A
- Efficiency is 93%
- Input voltage is 85 to 264VAC (derate linearly from 100% load at 90VAC to 90% load at 85VAC)
- Operating temperature is -20 to 70°C
| Specifications | |
|---|---|
| Power Supply Applications | ITE & Medical |
| No. of Outputs | 1 Output |
| Power Rating (Forced Cooling) | 225W at 10CFM |
| Power Rating (Convection Cooling) | 150W |
| Input Voltage VAC | 85V AC to 264V AC |
| Power Supply Output Type | Fixed |
| Output Voltage - Output 1 | 24VDC |
| Output Current - Output 1 | 6.25A |
| Product Range | EPL Series |
| Country of Origin: | Taiwan |
