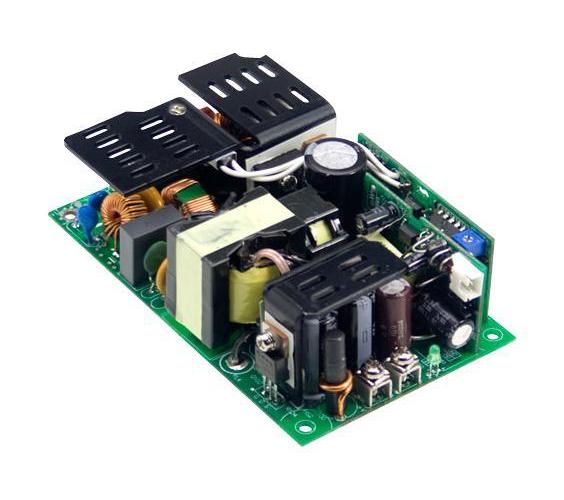

AC/DC Open Frame Power Supply, 24V, 12.5A, 300W - EPP-300-24
AC/DC Open Frame Power Supply, 24V, 12.5A, 300W - EPP-300-24
Regular price
£81.79 GBP
Regular price
Sale price
£81.79 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
An open frame (PCB) type switching power supply is a power supply designed to be integrated or installed into a system enclosure. Mean Well's open frame (PCB) type power supplies include on board, general PCB, green PCB, and medical PCB types.
Features
- Universal AC input / Full range
- Built-in active PFC function
- High efficiency up to 93%
- Withstand 300V AC surge input for 5 seconds
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Built-in 12V/0.5A auxiliary output
- 5"x3" compact size
- Free air convection for 200W and 300W with 20.5 CFM forced air
- With power good and fail signal output
- Built-in remote sense function
- No load power consumption under 0.5W by PS-ON control
- Standby 5V at 1A with fan, at 0.6A without fan
- 3-years warranty
| Specifications | |
|---|---|
| Power Supply Applications | ITE |
| No. of Outputs | 1 Output |
| Power Rating (Forced Cooling) | 300W at 20.5CFM |
| Power Rating (Convection Cooling) | 200W |
| Input Voltage VAC | 90V AC to 264V AC |
| Power Supply Output Type | Adjustable, Fixed |
| Output Voltage - Output 1 | 24VDC |
| Output Current - Output 1 | 8.33A |
| Product Range | EPP-300 Series |
| Important Product Warning: | Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts. |
| Country of Origin: | China |
