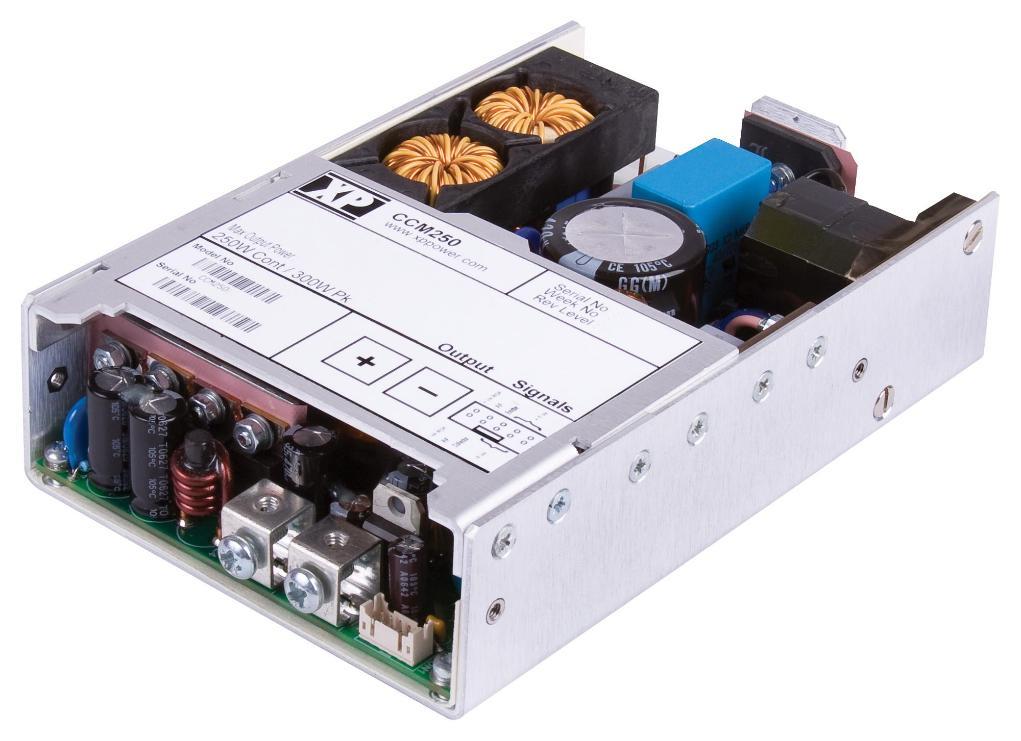

AC/DC Open Frame Power Supply, 24V, 10.4A, 250W - CCM250PS24
AC/DC Open Frame Power Supply, 24V, 10.4A, 250W - CCM250PS24
The CCM250 series is a single output 250W AC to DC power supply. It features industry leading efficiency of 95% and absolute minimum efficiency of 90% with 90VAC input and full load. This leap in efficiency has been achieved with full resonant ZCS topology and careful consideration to every aspect of power loss resulting in a convection cooled power supply packaged in a 6" (153mm) x 4" (102mm) x 1.5" (38mm) chassis which can be easily installed into the end application due to a 70% reduction in the dissipated heat. The CCM250 series have dual input fusing and are compliant with IEC60601-1 medical and IEC60950-1 IT safety approvals. They also boasts low earth leakage current of typically 90μA at 115V and 160μA at 230V, class B conducted and radiated emissions 5V standby rail, power fail signal and remote on / off.
Features
- 250W Convection Cooled
- 300W Peak Rating for 500ms
- High Efficiency, up to 95%
- Class B Conducted & Radiated Emissions
- 80V to 275VAC Operation
- IT, Industrial & Medical Safety Approvals
- See Technical Note for information about XP Power's plans for the UKCA Marking
Specifications | |
---|---|
Power Supply Applications | ITE & Medical |
No. of Outputs | 1 Output |
Power Rating (Convection Cooling) | 250W |
Input Voltage VAC | 80V AC to 275V AC |
Power Supply Output Type | Adjustable, Fixed |
Output Voltage - Output 1 | 24VDC |
Output Current - Output 1 | 10.4A |
Product Range | CCM250 Series |
Country of Origin: | Vietnam |
