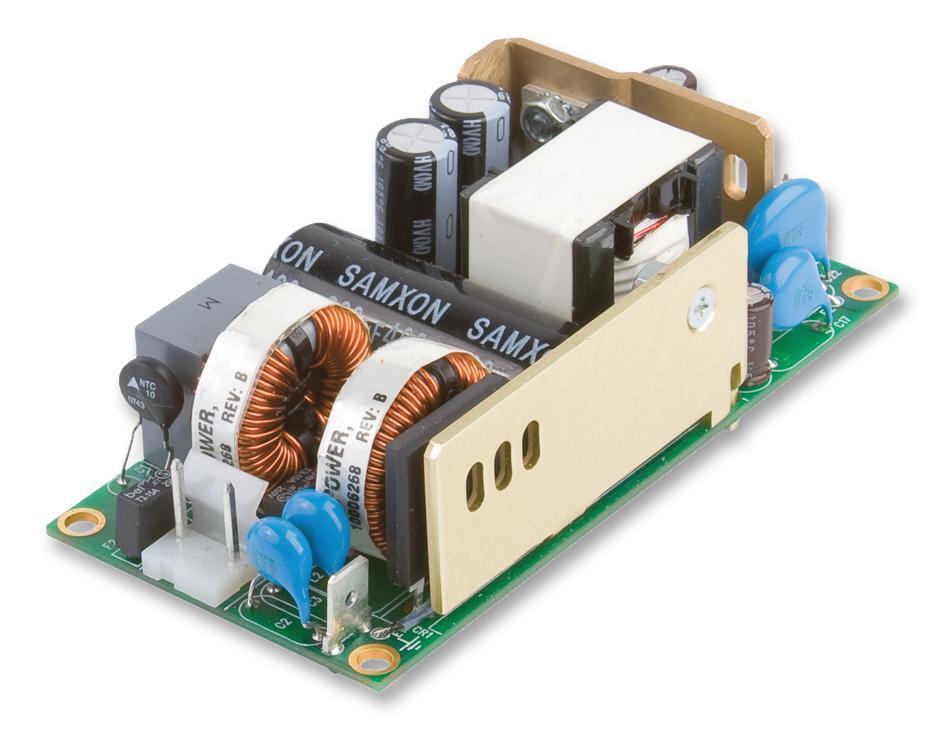

AC/DC Open Frame Power Supply, 18V, 7.3A, 130W - ECS130US18
AC/DC Open Frame Power Supply, 18V, 7.3A, 130W - ECS130US18
The ECS100 series is a single output enclosed medical Power Supply designed to minimize the no load power consumption (0.5W) and maximize efficiency in order to facilitate equipment design to the latest environmental legislation. Approved for class I and class II applications in an industry standard 2 x 4" (51 x 102mm) footprint with height of 1.2" (31mm) for 1U applications.The power supply meets EN55022 level B emissions with low earth leakage current and is dual-fused for compliance with IEC60601-1. Efficiency is 88% typical, so minimal excess heat is generated. The ECS100 requires only 10CFM of cooling to delivers a full 100W of power up to 50°C and operates at up to 70°C with derating or 80W when convection cooled up to 50°C with operation to 70°C with derating.
Features
- IT & Medical 3rd Edition Safety Approvals
- 2 x MOPP with Risk Management File
- <0.5 W No Load Input Power
- 80W - Convection-cooled
- 100W - Forced Cooled
- Class I & Class II Construction
- Industry Standard 2" x 4" Package
- See Technical Note for information about XP Power's plans for the UKCA Marking
Specifications | |
---|---|
Power Supply Applications | ITE & Medical |
No. of Outputs | 1 Output |
Power Rating (Forced Cooling) | 130W at 10CFM |
Power Rating (Convection Cooling) | 100W |
Input Voltage VAC | 80V AC to 264V AC |
Power Supply Output Type | Adjustable, Fixed |
Output Voltage - Output 1 | 18VDC |
Output Current - Output 1 | 7.3A |
Product Range | ECS Series |
Country of Origin: | Vietnam |
