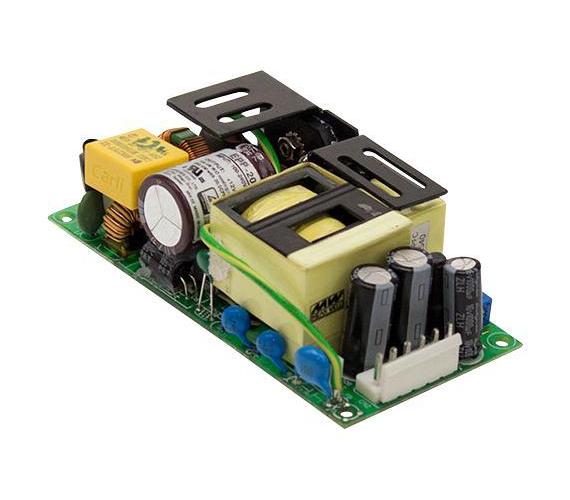

AC/DC Open Frame Power Supply, 12V, 11.7A, 140W - EPP-200-12
AC/DC Open Frame Power Supply, 12V, 11.7A, 140W - EPP-200-12
EPP-200-12 is an EPP-200 series 200W highly reliable green PCB type power supply with a high power density (21.9W/in3) on the 4" by 2" footprint. The extremely low no load power consumption is down below 0.5W. This is able to be used for both class I(with FG) and class II(no FG) system design. This is equipped with complete protection functions. It is complied with the international safety regulations such as TUV BS EN/EN62368-1, UL62368-1 and IEC62368-1. This serves as a high price-to-performance power supply solution for various industrial applications. This has single output with PFC function. It includes short circuit, overload, over voltage, over temperature protection. Application includes industrial automation machinery, industrial control system, mechanical and electrical equipment, electronic instruments, equipments or apparatus. Approved by UL62368-1, TUV BS EN/EN62368-1, IEC62368-1, EAC TP TC 004.
Features
- Input voltage range from 80 to 264VAC, 113 to 370VDC, output voltage is 24V
- Output rated current is 5.9A(convection), rated output power is 141.6W(convection)
- Typical efficiency is 94%, universal AC input / full range
- Built-in active PFC function, operating altitude up to 5000 meters
- Cooling by free air convection for 140W and 200W with 10CFM forced air
- Built-in 12V/0.5A FAN supply, LED indicator for power on
- 3 years warranty
- Working temperature range from -30 to +70°C
- Dimension is (L x W x H) 101.6 x 50.8 x 29mm
Specifications | |
---|---|
Power Supply Applications | ITE |
No. of Outputs | 1 Output |
Power Rating (Forced Cooling) | 200W at 10CFM |
Power Rating (Convection Cooling) | 140W |
Input Voltage VAC | 80V AC to 264V AC |
Power Supply Output Type | Adjustable, Fixed |
Output Voltage - Output 1 | 12VDC |
Output Current - Output 1 | 11.7A |
Product Range | EPP-200 Series |
Important Product Warning: | Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts. |
Country of Origin: | China |
