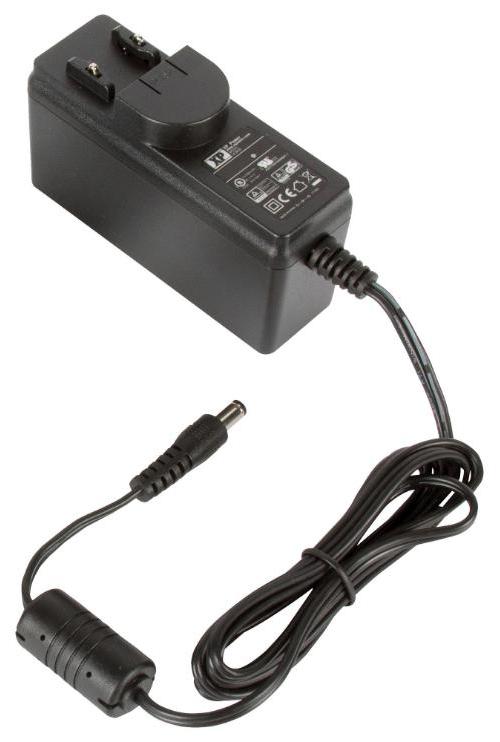

AC/DC Interchangeable Power Supply, ITE & Medical, 12V, 3A, 36W, 2.5mm Plug - ACM36US12
AC/DC Interchangeable Power Supply, ITE & Medical, 12V, 3A, 36W, 2.5mm Plug - ACM36US12
Regular price
£21.49 GBP
Regular price
Sale price
£21.49 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
ACM36 series is a plug top AC-DC power supply with medical (2 x MOPP) and ITE approvals. The ACM36 series of wall plug adaptors comply with the latest energy efficiency level VI standards with high active mode efficiency and extremely low no load power consumption. These adaptors suit a wide variety of cost sensitive industrial and medical applications while maintaining industry leading performance. Safety approvals are UL60950-1, UL62368-1, ANSI/AAMI ES 60601-1, EN60950-1, EN62368-1, EN60601-1, IEC60950-1, IEC62368-1, IEC60601-1, CSA C22.2 No. 60601, AU/NZ 60950.1.
Features
- European CoC tier 2
- Input voltage rating is 90 to 264VAC
- Output power is 36W
- Output voltage is 12V, input frequency is 47 to 63Hz
- Output current is 3000mA, 88.6% efficiency
- Total regulation is 5% (total regulation includes initial set accuracy, line and load regulation)
- Continuous, trip and restart (hiccup mode) with auto recovery short circuit protection
- Operating temperature is 0 to 60°C (derate from 100% load at 40°C to 50% load at 60°C)
- Interchangeable mains connectors
- 3 years warranty
| Specifications | |
|---|---|
| Power Supply Applications | ITE & Medical |
| No. of Outputs | 1 Output |
| Output Power Max | 36W |
| Output Voltage - Output 1 | 12VDC |
| Output Current - Output 1 | 3A |
| Output Connector | Barrel Plug Center Positive 2.5mm x 5.5mm x 11mm |
| Power Supply Output Type | Fixed |
| Input Voltage VAC | 90V AC to 264V AC |
| Product Range | ACM Series |
| Plug Type | Mains Plug Sold Separately |
| Country of Origin: | China |
