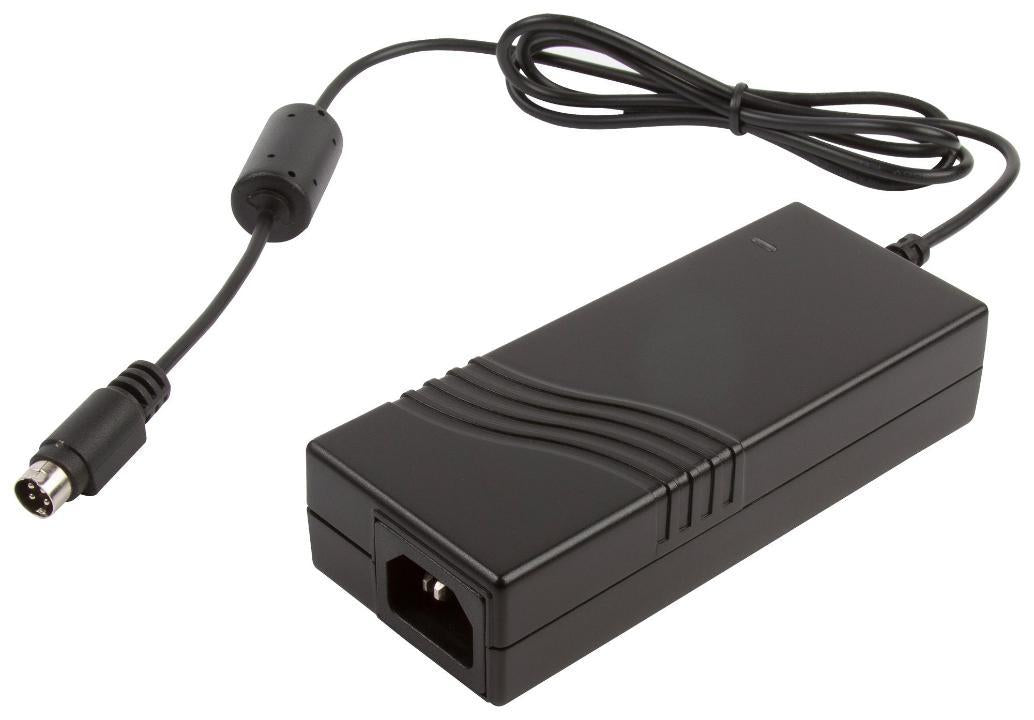

AC/DC External Power Supply, 12V, 7.5A, 90W - VES90PS12
AC/DC External Power Supply, 12V, 7.5A, 90W - VES90PS12
Regular price
£49.79 GBP
Regular price
Sale price
£49.79 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
VES90PS12 is a VES90 series 90W AC-DC power supply. It includes overload, overvoltage, short circuit protection. Certified by UL-UL60950-1, UL62368-1, TUV-EN60950-1, EN62368-1, CB-IEC60950-1, IEC62368-1 standards. The 90W VES90 with Energy Efficiency Level VI and CoC Tier 2 these desktop/external AC-DC power supplies are designed for high volume/low cost applications. With class I construction the VES90 are fitted with an IEC320-C14 inlet and have a voltage input range of 90 to 264VAC. The DC lead is fitted with a 4 pin power mini DIN connector as standard, alternatively a 5.5 x 2.5mm barrel jack connector can be specified as an option.
Features
- Input voltage range from 90 to 264VAC, output voltage is 12V, output current is 7.50A
- Efficiency is 89%
- Energy efficiency level VI, European CoC tier 2
- High power density
- <0.15W standby power, china compulsory certification (CCC) qualified
- 0°C to 60°C operation, low cost
- Isolation is 3000VAC (input to output), switching frequency is 55KHz (full load)
- Dimension is 139.0 x 58.0 x 31.0mm
| Specifications | |
|---|---|
| Power Supply Applications | ITE |
| No. of Outputs | 1 Output |
| Output Power Max | 90W |
| Output Voltage - Output 1 | 12VDC |
| Output Current - Output 1 | 7.5A |
| Output Connector | 4 Way Mini DIN |
| Power Supply Output Type | Fixed |
| Input Voltage VAC | 90V AC to 264V AC |
| Product Range | VES Series |
| Plug Type | Mains Plug Sold Separately |
| Country of Origin: | China |
