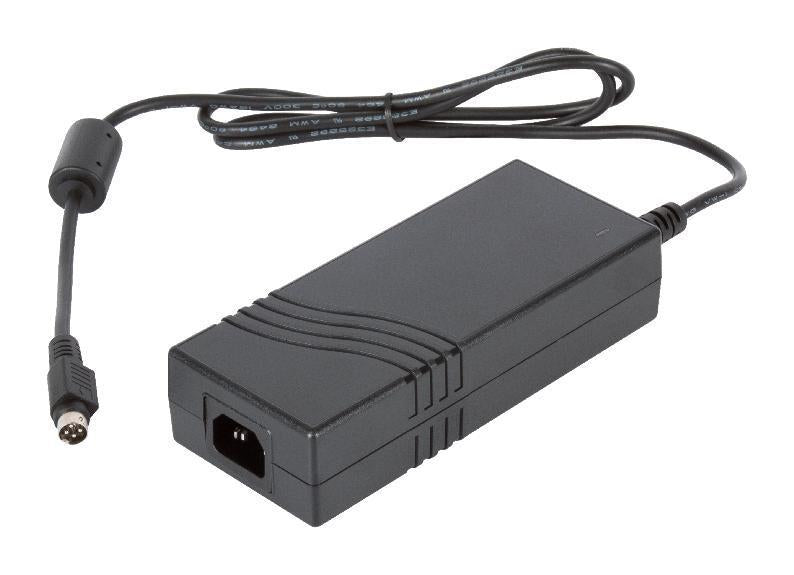

AC/DC External Power Supply, 12V, 18.3A, 180W - VES220PS12
AC/DC External Power Supply, 12V, 18.3A, 180W - VES220PS12
Regular price
£106.89 GBP
Regular price
Sale price
£106.89 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The VES220 series is a 220W AC to DC power supplies. These power supply meets Energy Efficiency Level VI and CoC Tier 2 minimum efficiency limits and no-load power requirements, thereby reducing operating costs of equipment. Typical efficiency are around 92% ensuring that the PSUs remain cool even when delivering full power.
Features
- Less than 0.15W standby power
- High power density
- China Compulsory Certification (CCC) Qualified
- Operating temperature range from -10°C to +60°C
- Dimension is 7.77" x 3.5" x 1.53" (197.4mm x 88.9mm x 39.0 mm)
- See Technical Note for information about XP Power's plans for the UKCA Marking
| Specifications | |
|---|---|
| Power Supply Applications | ITE |
| No. of Outputs | 1 Output |
| Output Power Max | 220W |
| Output Voltage - Output 1 | 12VDC |
| Output Current - Output 1 | 18.3A |
| Output Connector | 8 Way Mini Fit JR |
| Power Supply Output Type | Fixed |
| Input Voltage VAC | 90V AC to 264V AC |
| Product Range | VES Series |
| Plug Type | Mains Plug Sold Separately |
| Country of Origin: | Switzerland |
