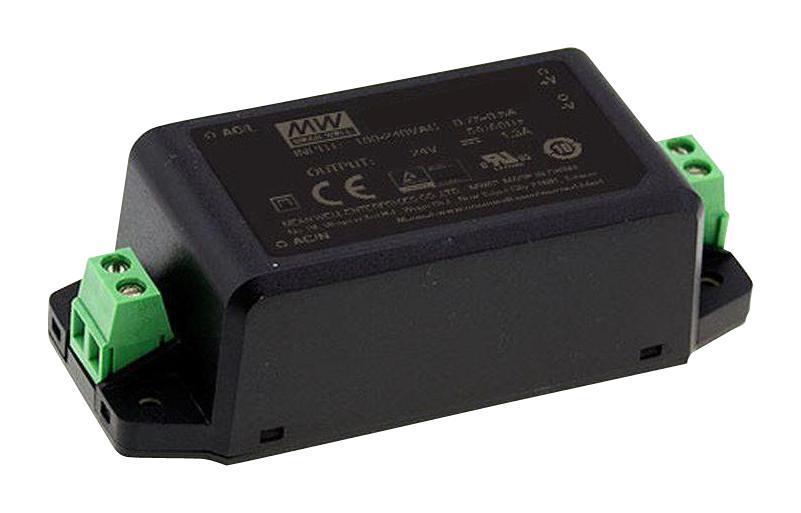

AC/DC Enclosed Power Supply, Medical Approved, 3.3V, 6A, 19.8W - MPM-30-3.3ST
AC/DC Enclosed Power Supply, Medical Approved, 3.3V, 6A, 19.8W - MPM-30-3.3ST
Regular price
£33.19 GBP
Regular price
Sale price
£33.19 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
MPM-30 is a 30W high density and small size AC/DC module type medical power supply series offered in pin type. It features the operation for 80-264VAC, a low no load power consumption less than 0.075W, a high efficiency up to 91%, Class II (no FG) double insulation, outstanding dissipation and high lifespan thanks to the interior potting, 5G anti-vibration, high EMC performance, 4kV AC isolation, etc. The design observes IEC/EN60601-1 and ANSI/AAMI ES60601-1 version three with 2x MOPP level and ultra-low leakage current (<80μA). It is suitable for BF (patient contact) type medical device or relevant equipment.
Features
- 2.73"x1.53" compact size
- Medical safety approved (2x MOPP) according to ANSI/AAMI ES60601-1 and IEC/EN60601-1
- Suitable for BF application with appropriate system consideration
- No load power consumption <0.075W
- Extremely low leakage current
- Wide operating temp. range -40°C to +85°C
- EMI class B for class II configuration
- Protections: Short circuit / Overload / Over voltage
- No minimum load required
- 3-years warranty
| Specifications | |
|---|---|
| Power Supply Applications | Household & Medical |
| No. of Outputs | 1Outputs |
| Output Power Max | 19.8W |
| Output Voltage - Output 1 | 3.3VDC |
| Output Current - Output 1 | 6A |
| Input Voltage VAC | 80V AC to 264V AC |
| Power Supply Output Type | Fixed |
| Product Range | MPM-30 Series |
| Important Product Warning: | Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts. |
| Country of Origin: | China |
