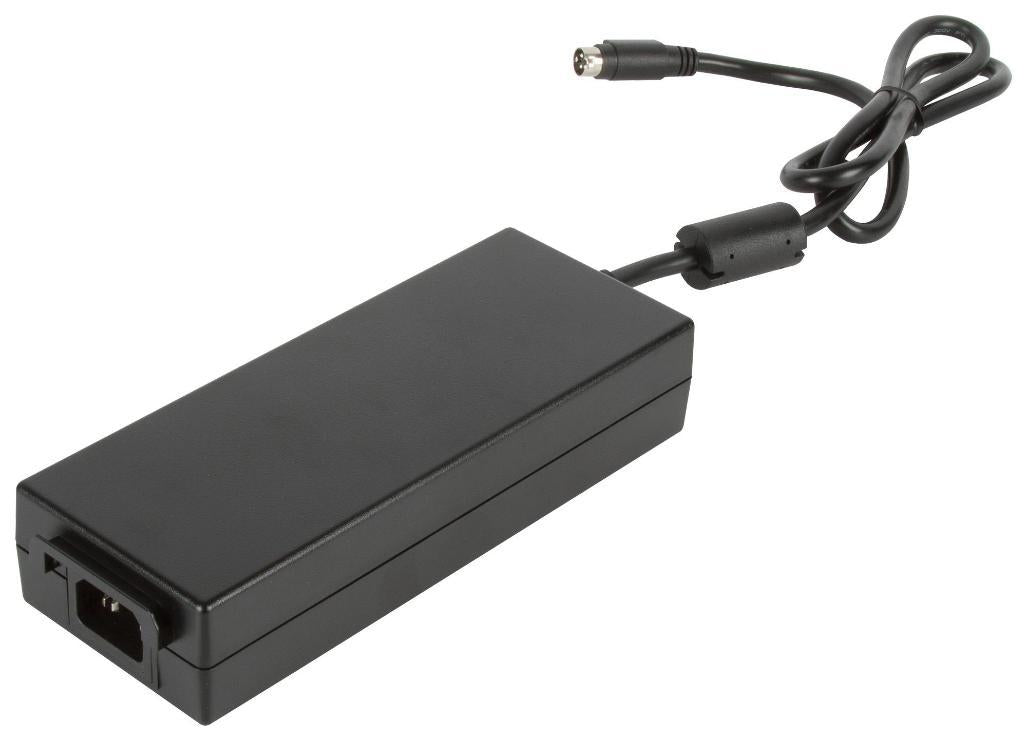

AC/DC Enclosed Power Supply, Medical Approved, 24V, 6.2A, 150W, 2.5mm Plug - ALM150PS24C2-8
AC/DC Enclosed Power Supply, Medical Approved, 24V, 6.2A, 150W, 2.5mm Plug - ALM150PS24C2-8
Regular price
£93.49 GBP
Regular price
Sale price
£93.49 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The ALM150 series of medical external power supplies is fully approved to international medical and IT safety standards. It has been designed with very high efficiency and low standby power, enabling it to meet the latest environmental legislation. The unit has a fully sealed enclosure complying with IP32 and a smooth surface finish making it easier to wipe down in a clinical setting.
Features
- Energy efficiency level VI and EU CoC tier 2 compliant
- Less than 0.15W standby power
- 0°C to 60°C operation
- Low earth leakage current
- Dimension is 7.323" x 2.843" x 1.496" (186.0 x 72.0 x 38.0mm)
- Class II Construction
- See Technical Note for information about XP Power's plans for the UKCA Marking
| Specifications | |
|---|---|
| Power Supply Applications | ITE & Medical |
| No. of Outputs | 1 Output |
| Output Power Max | 150W |
| Output Voltage - Output 1 | 24VDC |
| Output Current - Output 1 | 6.2A |
| Output Connector | 4 Way DIN |
| Power Supply Output Type | Fixed |
| Input Voltage VAC | 80V AC to 264V AC |
| Product Range | ALM150 Series |
| Plug Type | IEC 60320 C8 |
| Country of Origin: | Vietnam |
